Map Light Removal/Installation

MAP LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

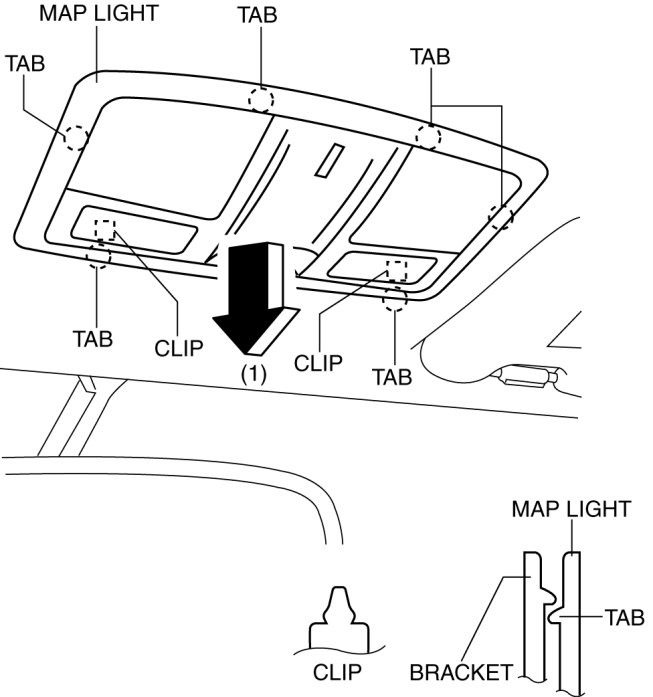

2. Remove the tabs shown in the figure.






3. Pull the map light in the direction of the arrow (1) shown in the figure and remove the map light while detaching the clips.

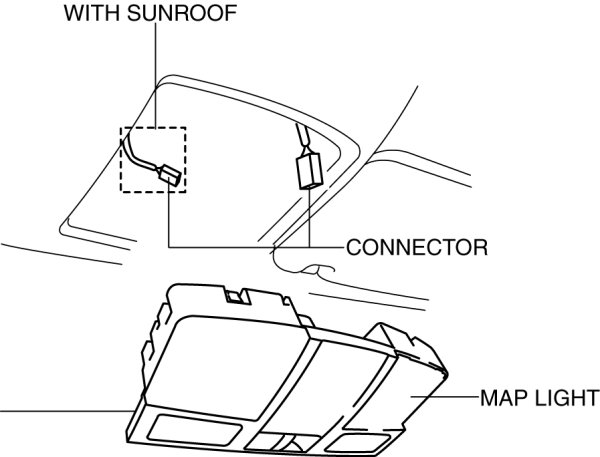

4. Disconnect the connector.






5. Install in the reverse order of removal.
