Full-Auto Air Conditioner

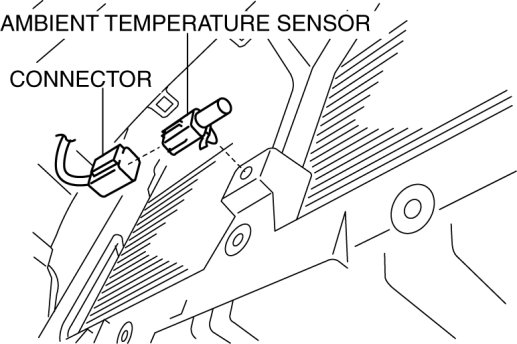

AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

3. Remove the aerodynamic under cover No.1. Aerodynamic Under Cover No. 1 Removal/Installation

4. Disconnect the connector.






5. Remove the ambient temperature sensor.

6. Install in the reverse order of removal.
