Fuel Pump Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

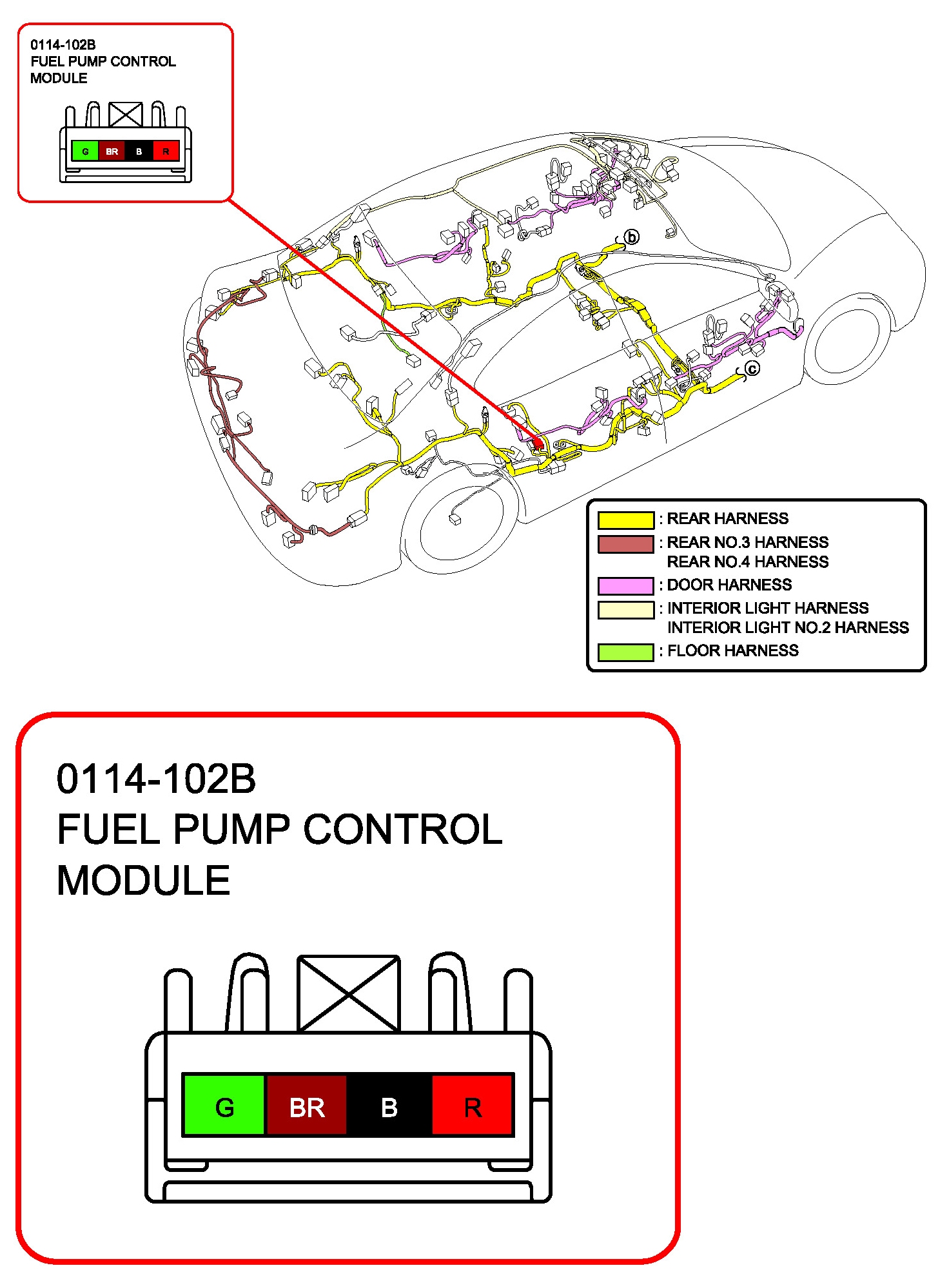

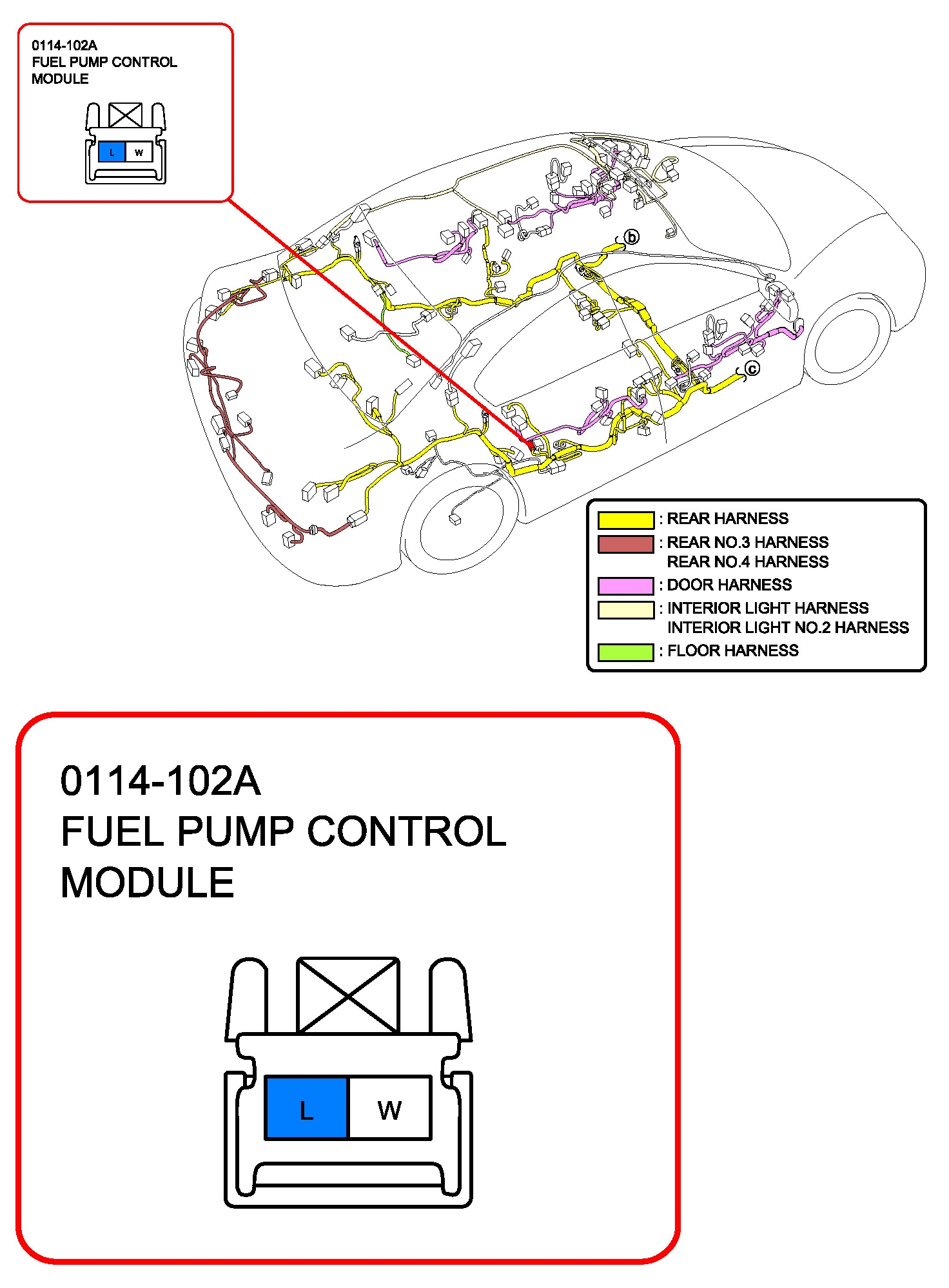

Fuel Pump Control Module
