DTC P0340:00: Notes

DTC P0340:00	CMP sensor circuit problem
DETECTION CONDITION	The PCM monitors the input voltage from the CMP sensor when the engine is running. If the PCM does not receive the input voltage from the CMP sensor while the PCM receives the input signal from the CKP sensor, the PCM determines that the CMP sensor circuit has a malfunction. Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA (Mode 2)/Snapshot data is available. The DTC is stored in the PCM memory.

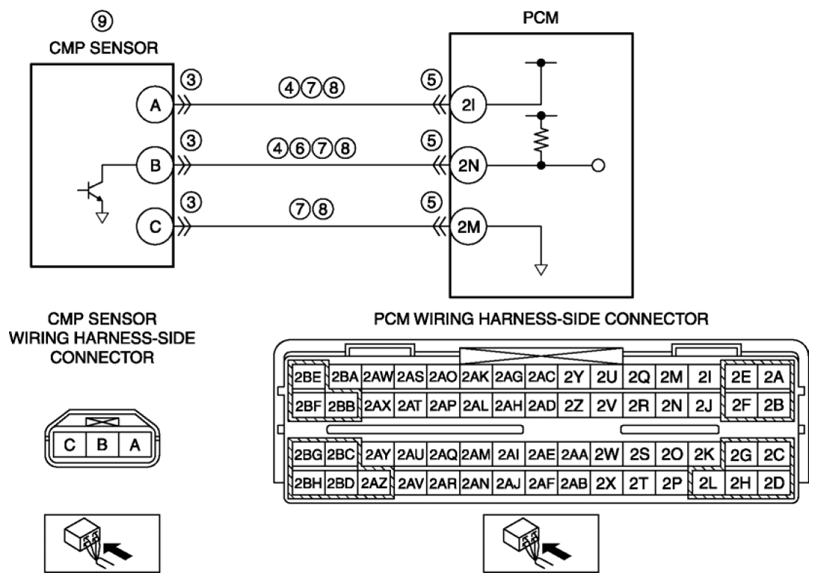

POSSIBLE CAUSE	CMP sensor connector or terminals malfunction Short to ground in wiring harness between the following terminals: CMP sensor terminal A-PCM terminal 2I CMP sensor terminal B-PCM terminal 2N PCM connector or terminals malfunction Short to power supply in wiring harness between CMP sensor terminal B and PCM terminal 2N CMP sensor circuits are shorted to each other Open circuit in wiring harness between the following terminals: CMP sensor terminal A-PCM terminal 2I CMP sensor terminal B-PCM terminal 2N CMP sensor terminal C-PCM terminal 2M CMP sensor malfunction CMP sensor is dirty CMP sensor pulse wheel malfunction Variable valve timing mechanism misinstallation Loose timing chain or improper valve timing Loose camshaft sprocket lock bolt Loose crankshaft pulley lock bolt Stopper pin mechanism malfunction Variable valve timing mechanism is stuck in advanced position PCM malfunction
