Flywheel

Flywheel

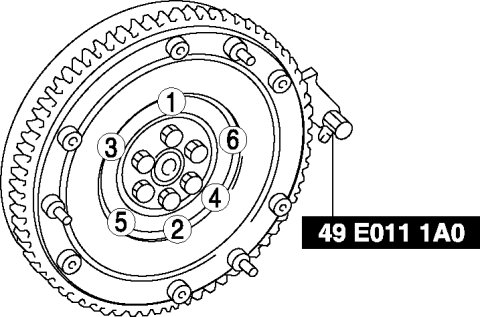

Tighten the lock bolts in a crisscross pattern.

Tightening torque 97-103 Nm {9.9-10 kgf-m, 72-75 ft-lbf}
