Flex Plate

Drive Plate

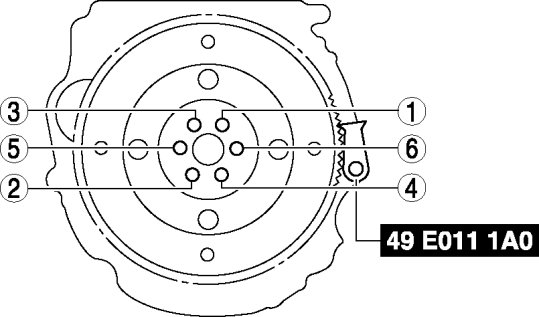

Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure.

Tightening torque 97-103 Nm {9.9-10 kgf-m, 72-75 ft-lbf}
