Cylinder Head Assembly
Cylinder HeadMeasure the length of each cylinder head bolt.
Cylinder head bolt length
Standard 128.9-129.5 mm {5.075-5.098 in}
Maximum 130.2 mm {5.125 in}

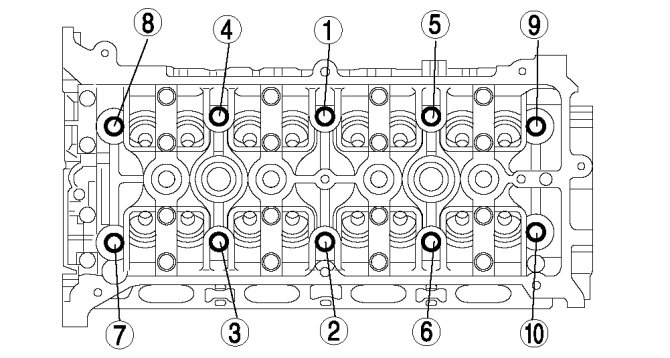

Tighten the cylinder head installation bolts in three steps in the order shown in the figure.
Tightening torque 18-22 Nm {1.8-2.2 kgf-m, 13-16 ft-lbf}
Tightening angle 85°-95°
Tightening angle 85°-95°
Camshaft Bearing Cap

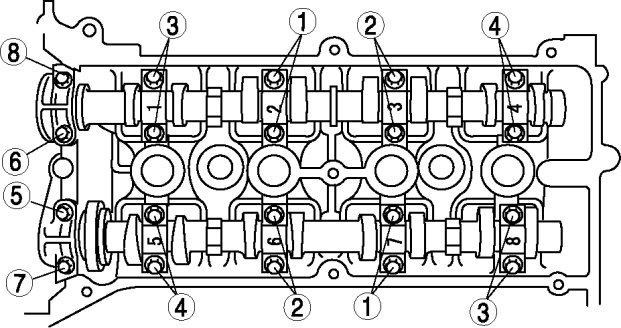

Tighten the camshaft installation bolts in two or three steps uniformly in the order shown in the figure.
Tightening torque 12-14 Nm {116-145 kgf-cm, 100-125 in-lbf}
