Alignment

Front

Rear

Ride Height

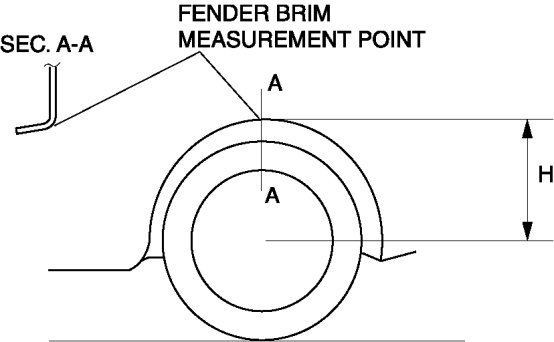

Measure height H from the center of the wheel to the fender brim.

Verify that the difference between the left and right dimension H is within the specification.

Standard 10 mm {0.39 in} or less
