Suspension

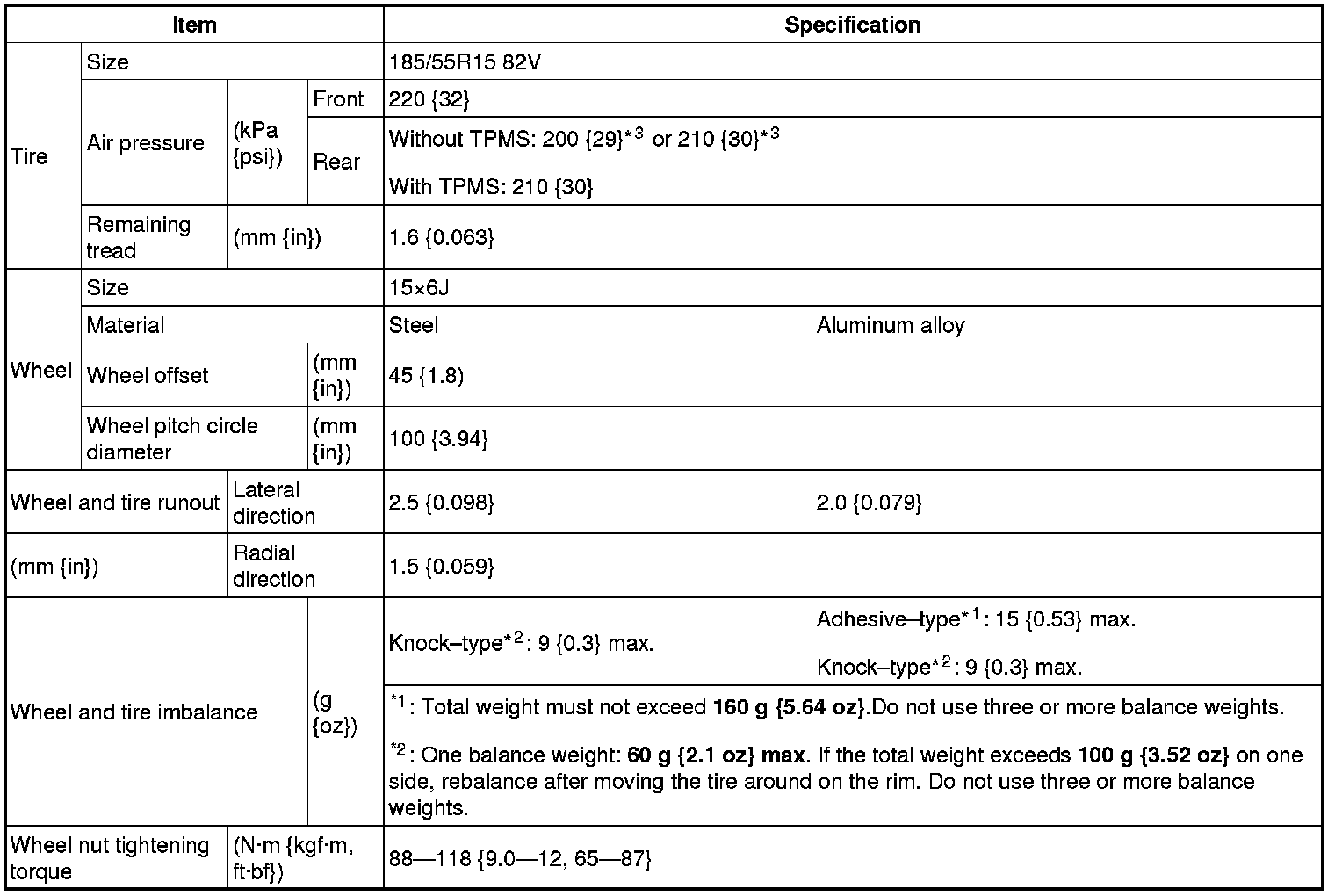

SUSPENSION TECHNICAL DATA

Wheel And Tire

Standard tire

*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

*3
Verify the tire label attached to the actual vehicle on vehicles without TPMS.
