Seat Position Sensor: Service and Repair

SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION

1. Switch the ignition to off.

2. Disconnect the negative battery cable and wait for 1min or more.

3. Remove the front driver's seat Removal and Replacement

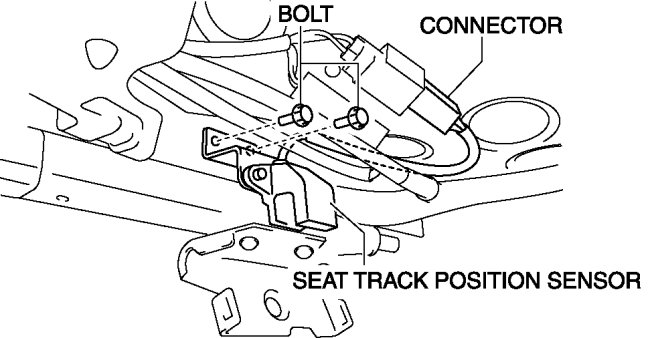

4. Remove the connector.

5. Remove the bolts.

6. Remove the seat track position sensor.

7. Install in the reverse order of removal.

8. Switch the ignition to ON.

9. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. Flowchart
