Fuse: Service and Repair

MAIN FUSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

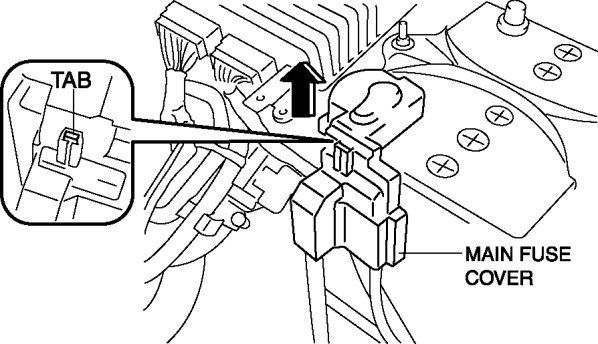

2. Remove the main fuse cover in the direction of the arrow while pressing the tab indicated in the figure.

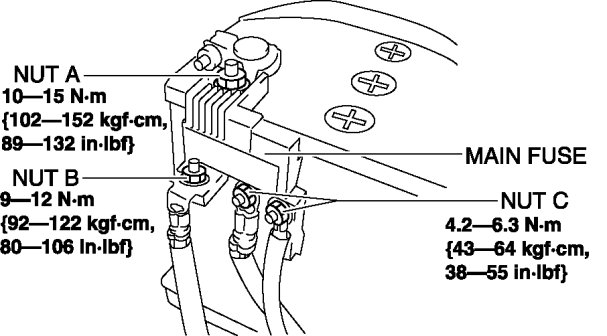

3. Remove nuts A, B, and C shown in the figure.

4. Remove the main fuse.

5. Install in the reverse order of removal.
