Auxiliary Power Outlet: Testing and Inspection

ACCESSORY SOCKET INSPECTION

1. Disconnect the negative battery cable.

2. Remove the console panel. Rear Console Removal/Installation

3. Remove the accessory socket. Service and Repair

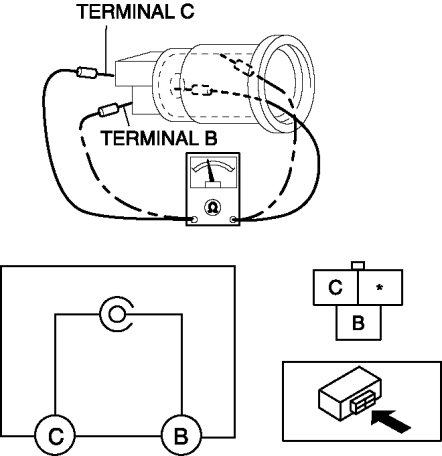

4. Connect a tester as shown in the figure and verify that there is continuity.






- If the continuity cannot be verified, replace the accessory socket.
