Removal and Replacement

COMBINATION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable and wait 1 min or more.

2. Remove the following parts:
a. Driver-side air bag module Driver-Side Air Bag Module Removal/Installation

b. Steering wheel Service and Repair

c. Column cover Service and Repair

d. Clock spring Service and Repair

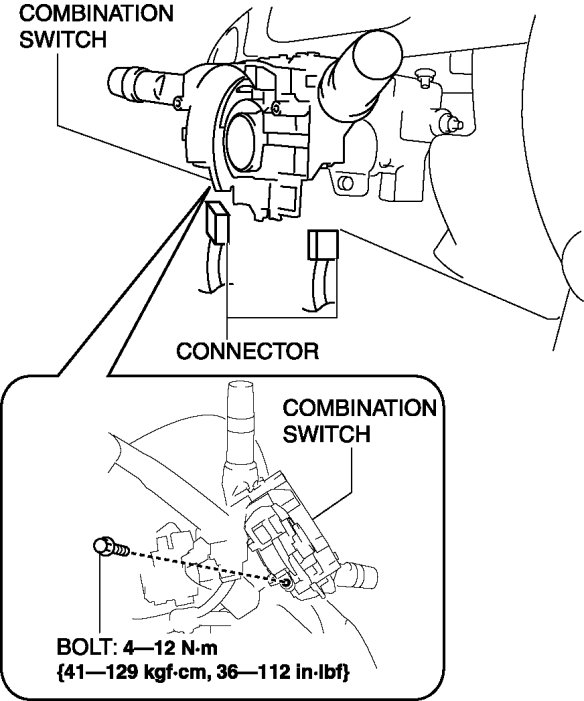

3. Disconnect the connector.






4. Remove the bolt.

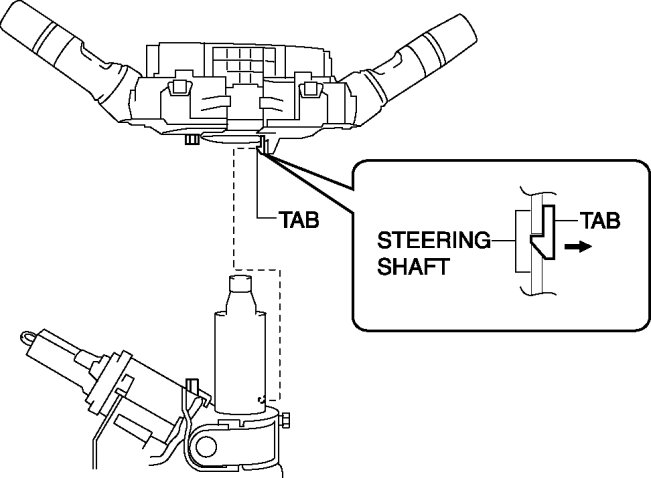

5. Detach the tab.






6. Remove the combination switch.

7. Install in the reverse order of removal.

Combination Switch Installation Note

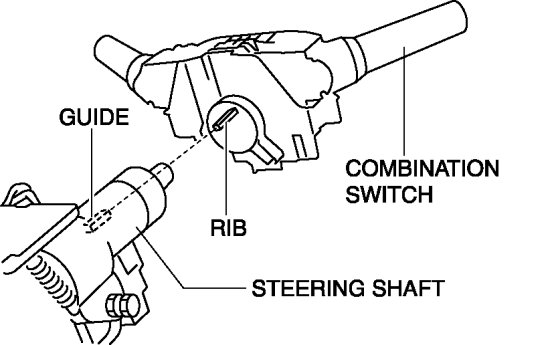

1. Align the combination switch rib with the steering shaft guide and press the combination switch until it contacts.
