Courtesy Lamp: Testing and Inspection

INTERIOR LIGHT INSPECTION

1. Remove the following parts:
a. A-pillar trim A-Pillar Trim Removal/Installation

b. Sunvisor Service and Repair

c. Assist handle Service and Repair

d. Rain sensor cover (vehicles with auto light/wiper system) Service and Repair

e. Interior light Service and Repair

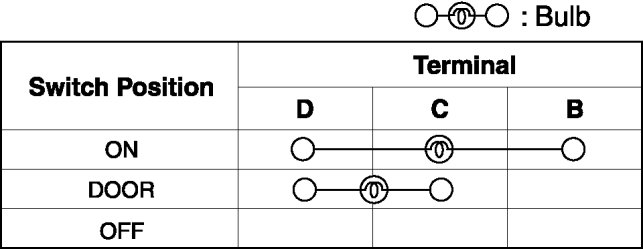

2. Verify that the continuity between the interior light terminals is as indicated in the table.






- If not as indicated in the table, replace the interior light.
