Cargo Lamp: Service and Repair

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

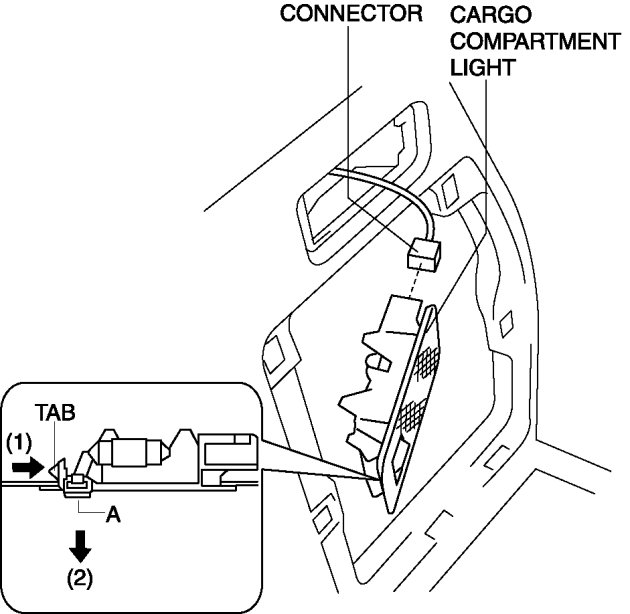

2. Insert hand through the service hole, release the tab in the direction of the arrow (1) shown in the figure, and pull area A in the direction of the arrow (2) to remove the cargo compartment light.

3. Disconnect the cargo compartment light connector.






4. Install in the reverse order of removal.
