Home >> Mazda >> 2012 >> 2 L4-1.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 4 No Temperature Control With Climate Control Unit
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

No. 4 No Temperature Control With Climate Control Unit





NO.4 NO TEMPERATURE CONTROL WITH CLIMATE CONTROL UNIT [MANUAL AIR CONDITIONER]

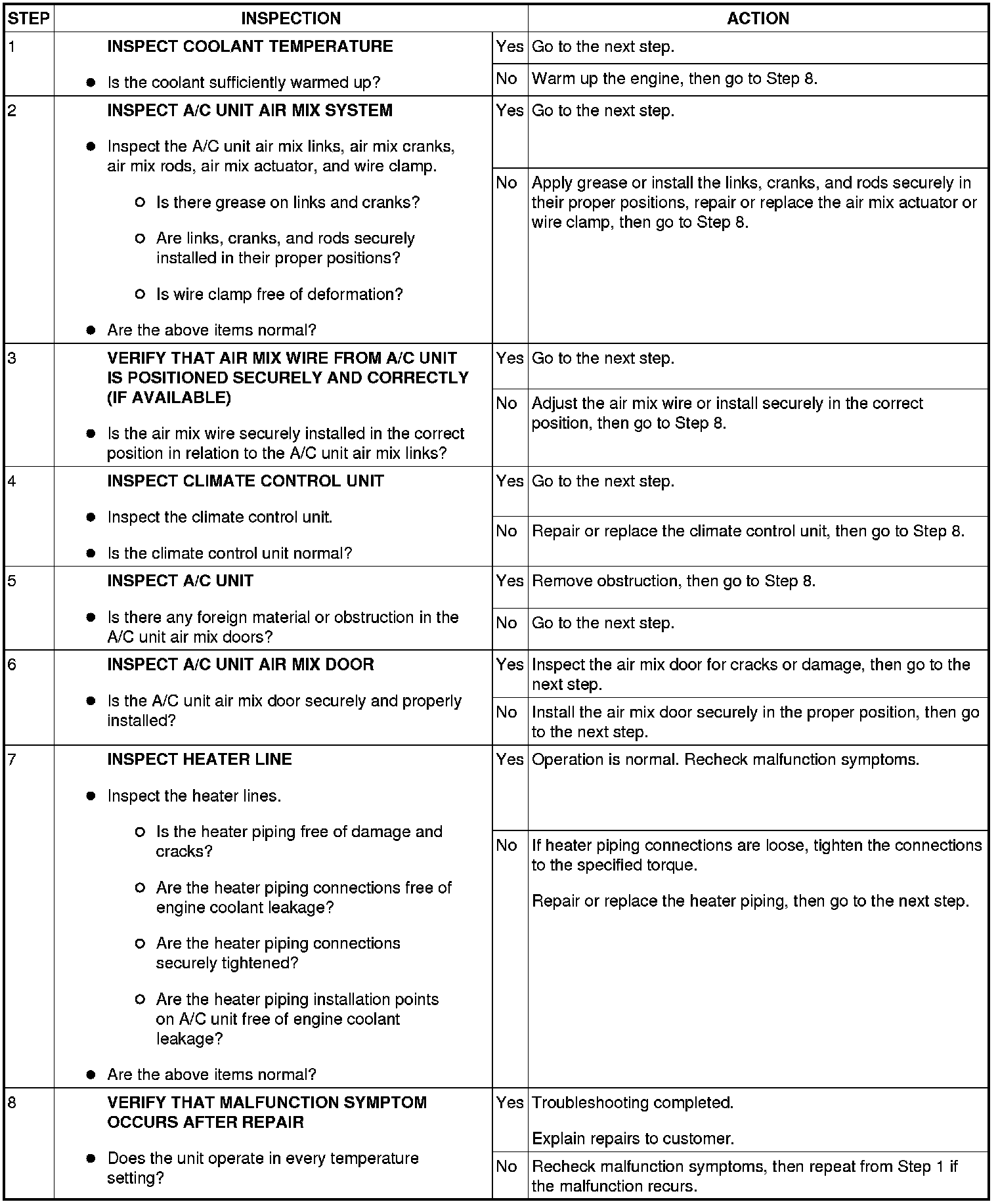

Diagnostic procedure
