Blower Motor Switch: Testing and Inspection

FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]

1. Remove the climate control unit.

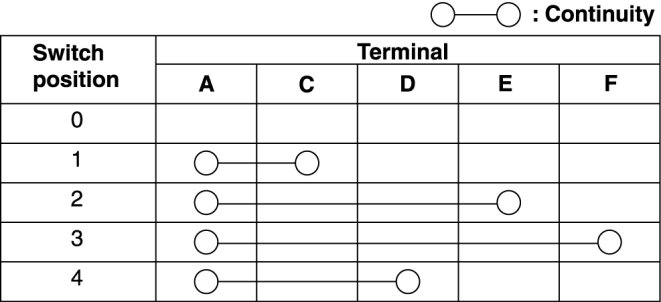

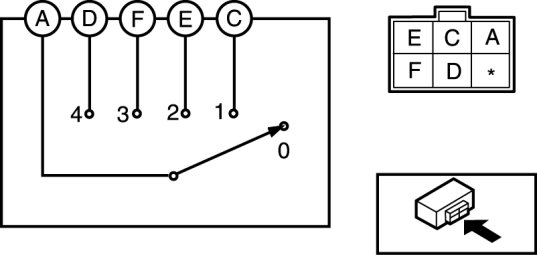

2. Inspect for continuity between the fan switch terminals using an ohmmeter.

- If not as specified, replace the fan switch.
