Blower Motor Resistor: Testing and Inspection

RESISTOR INSPECTION [MANUAL AIR CONDITIONER]

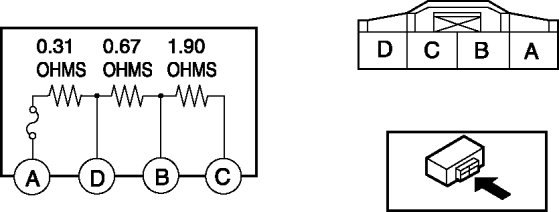

1. Verify that the resistance between the terminals of the resistor is as shown in the table.

- If not as specified, replace the resistor.
