Timing Chain Disassembly

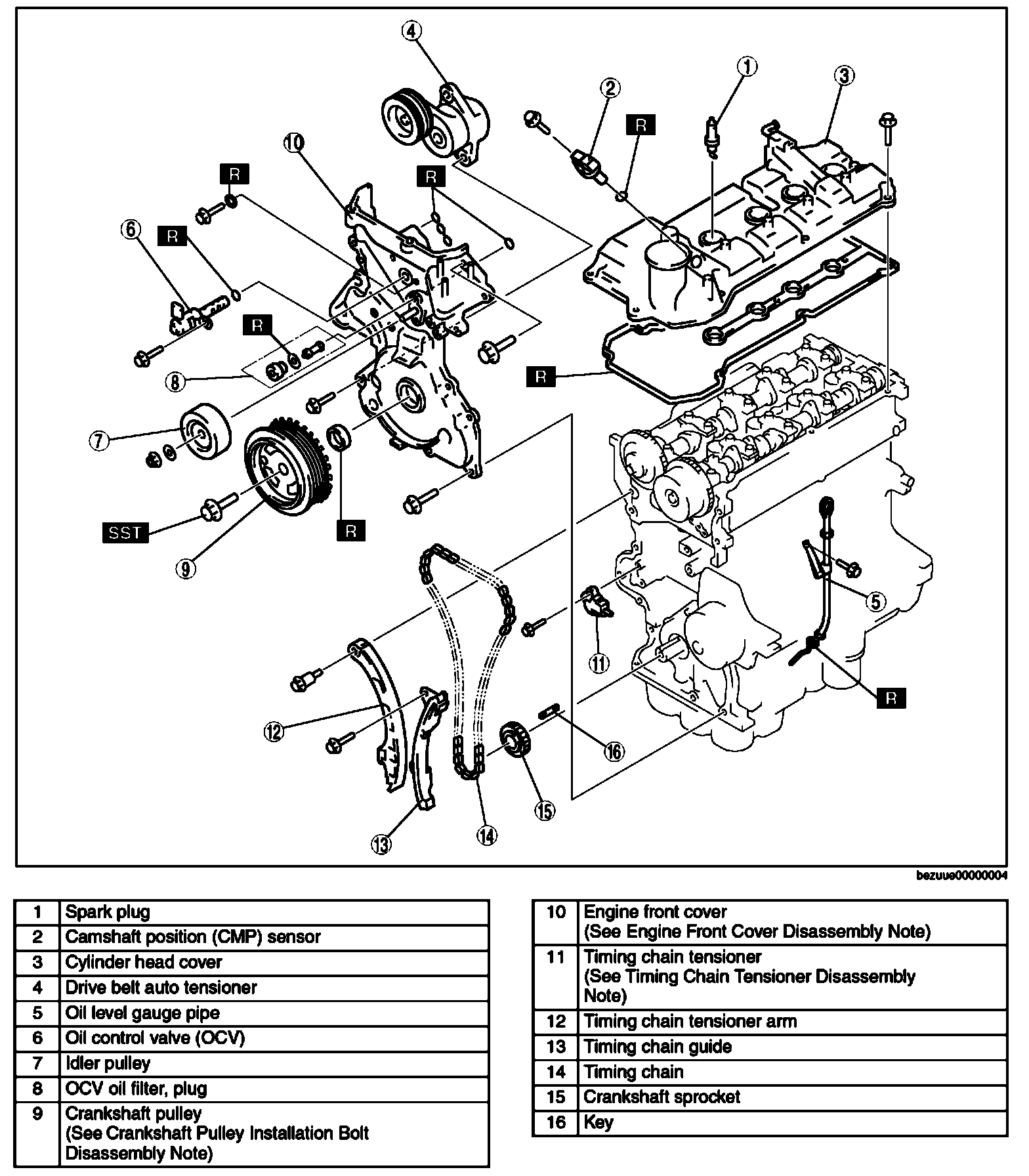

TIMING CHAIN DISASSEMBLY1. Disassemble in the order indicated in the table.
Crankshaft Pulley Installation Bolt Disassembly Note
1. Lock the drive plate (ATX) or flywheel (MTX) against rotation using the SST.
2. Remove the crankshaft pulley installation bolt.
Engine Front Cover Disassembly Note
1. Remove the oil seal using a flathead screwdriver.
Timing Chain Tensioner Disassembly Note
1. Push down the link plate of the timing chain tensioner using a thin flathead screwdriver (precision screwdriver) and release the plunger lock.
2. Push back the plunger slowly in the direction shown in the figure with the link plate still pushed down.
3. Free the link plate with the plunger still pushed.
4. Move the plunger back and forth 2-3 mm {0.08-0.11 in} and insert an approx. 1.5 mm {0.059 in} wire or paper clip where the link plate hole and the tensioner body hole overlap to fix the link plate and lock the plunger.
