Transmitter ID Code Registration

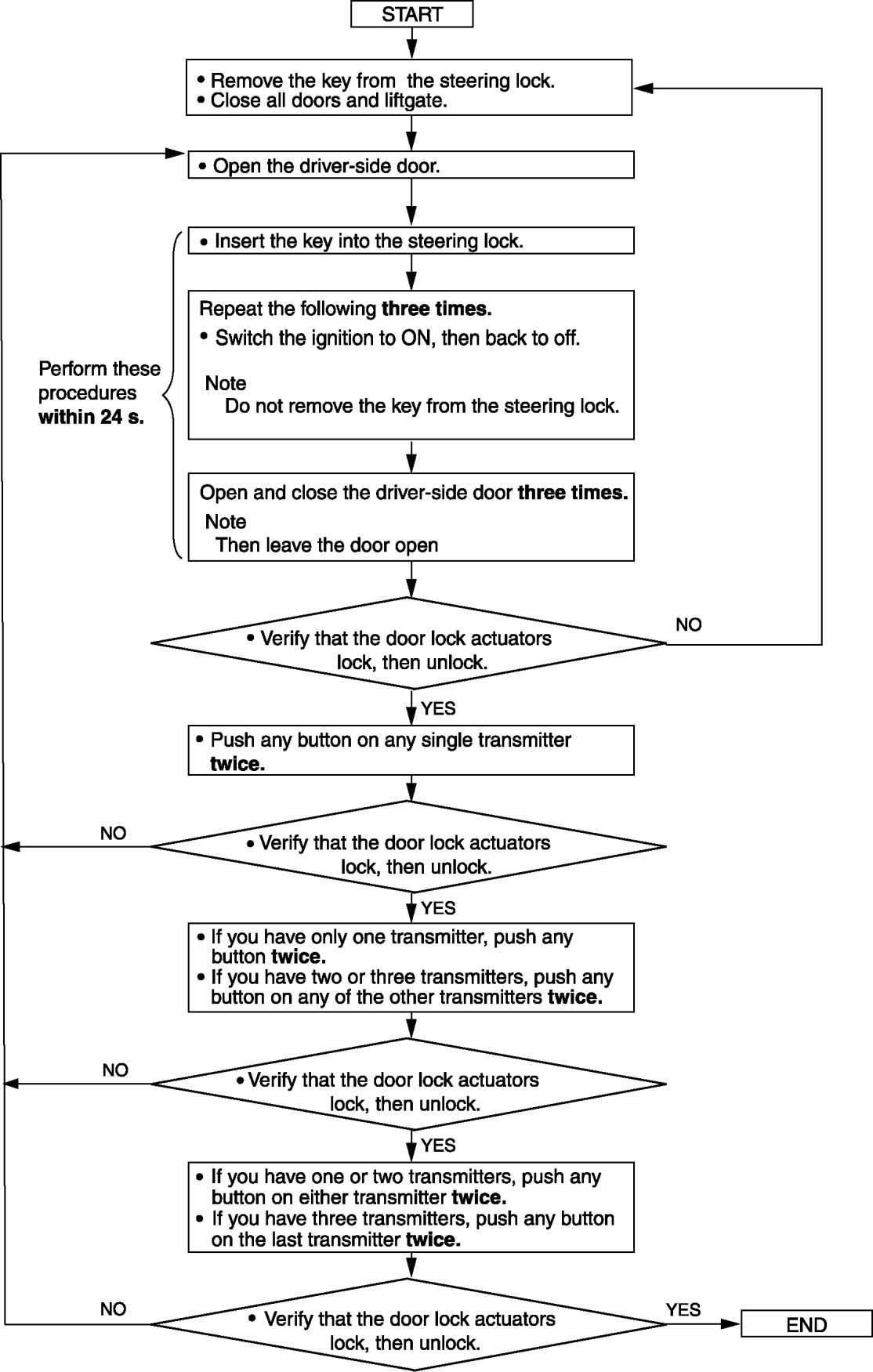

TRANSMITTER ID CODE REGISTRATION [KEYLESS ENTRY SYSTEM]

NOTE:
- Verify that the other transmitter is not being operated around the servicing area while updating the ID code.
- After completing the work, remove the key from the steering lock and verify that all the door lock/unlock operation using the transmitter is correct.
