Antenna - Keyless Entry: Service and Repair

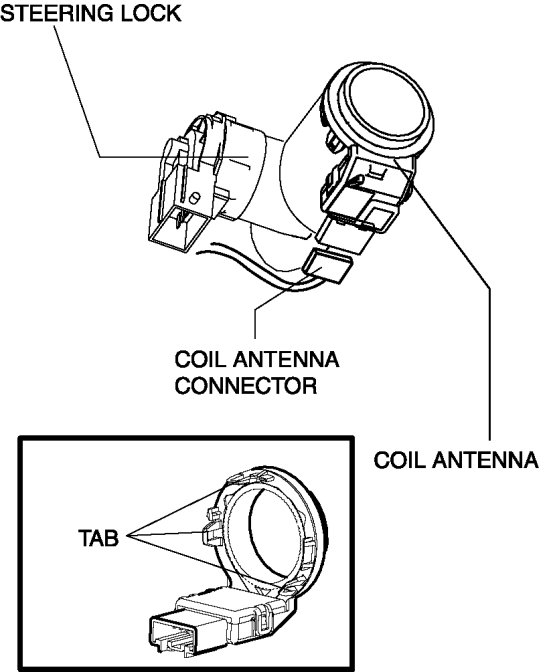

COIL ANTENNA REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Disconnect the coil antenna connector.

4. Detach the coil antenna hooks and remove the coil antenna from the steering lock.

5. Install in the reverse order of removal.
