Front Safety Belt Retractor Removal/Installation: Notes

NOTE:
  • The passenger-side is shown in illustration, the driver-side is similar.

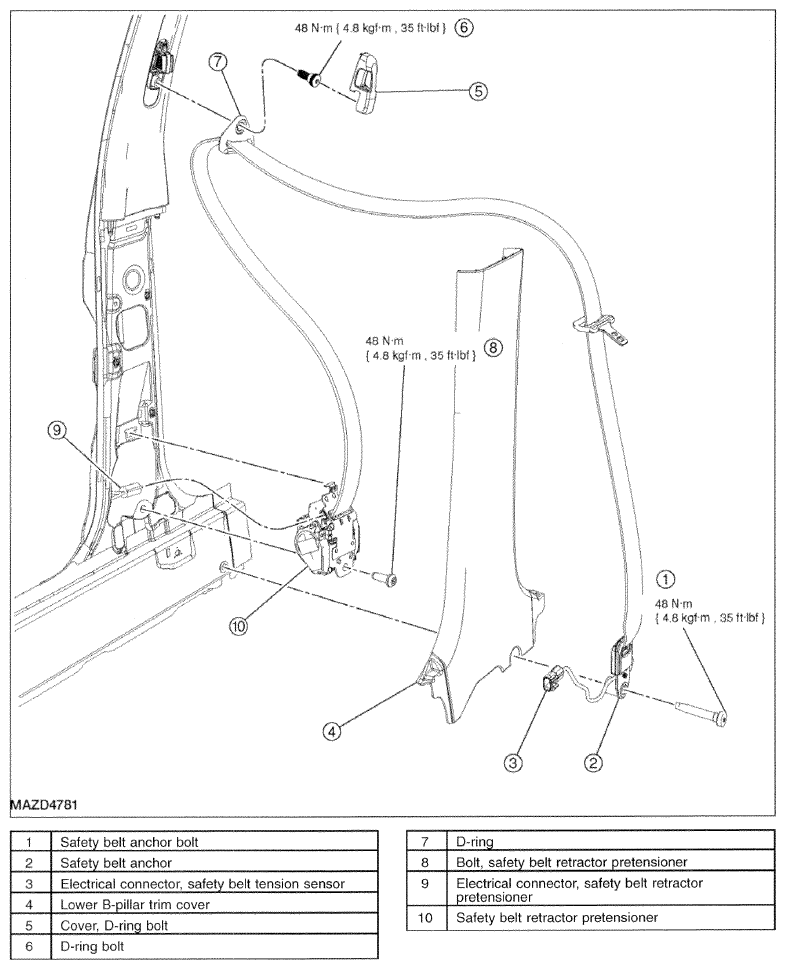

Fig 1: Front Safety Belt Retractor Replacement Components With Torque Specifications
G07436426Courtesy of MAZDA MOTORS CORP.
