Ignition Switch




COMPONENT TEST - IGNITION SWITCH

1. Remove the ignition switch. See Service and Repair.

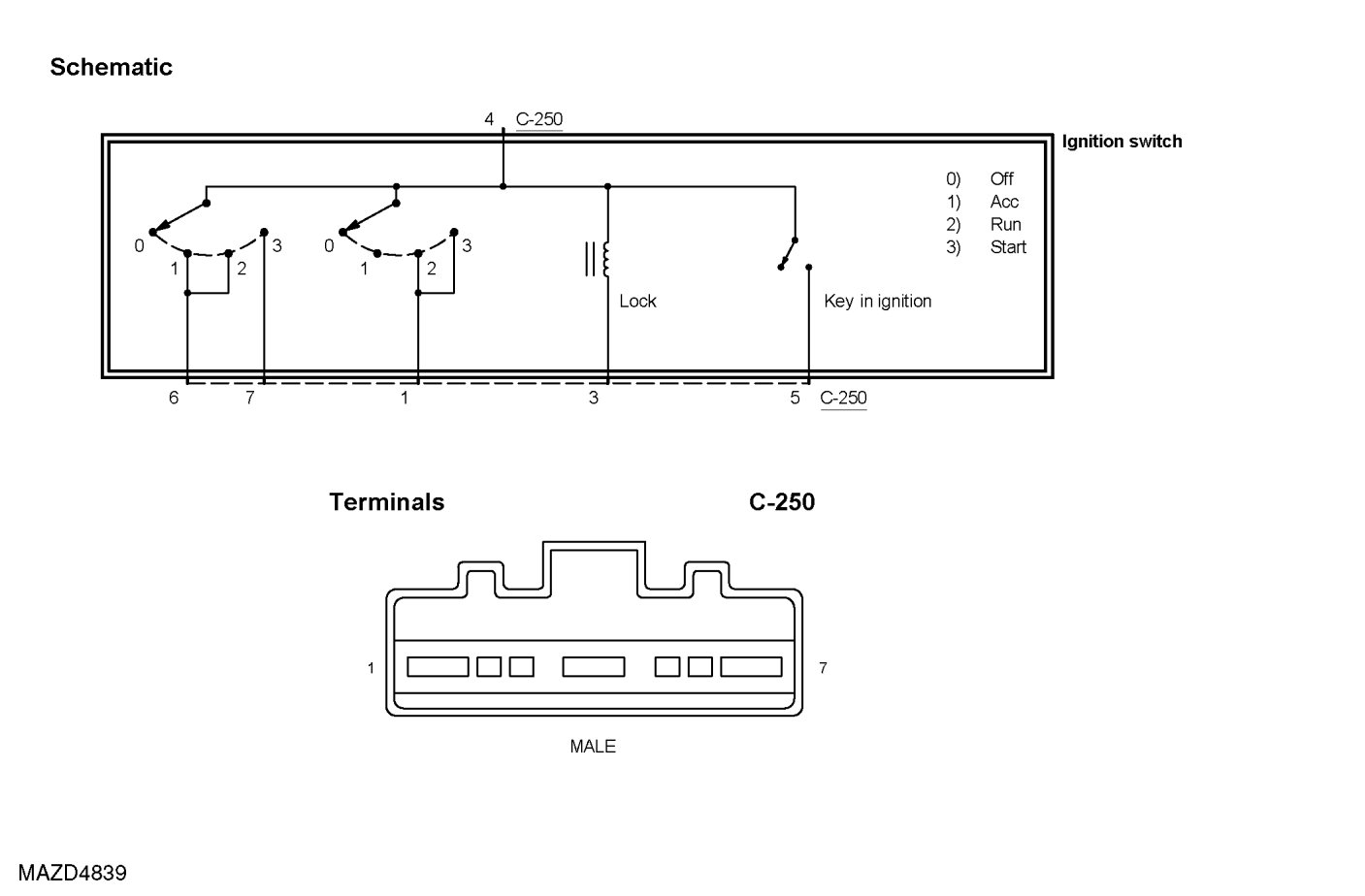

2. Inspect for continuity between the ignition switch terminals using a self-powered test light or an ohmmeter.
