Pinpoint Test 3: Transmission Control Switch (TCS) Does Not Operate Correctly
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

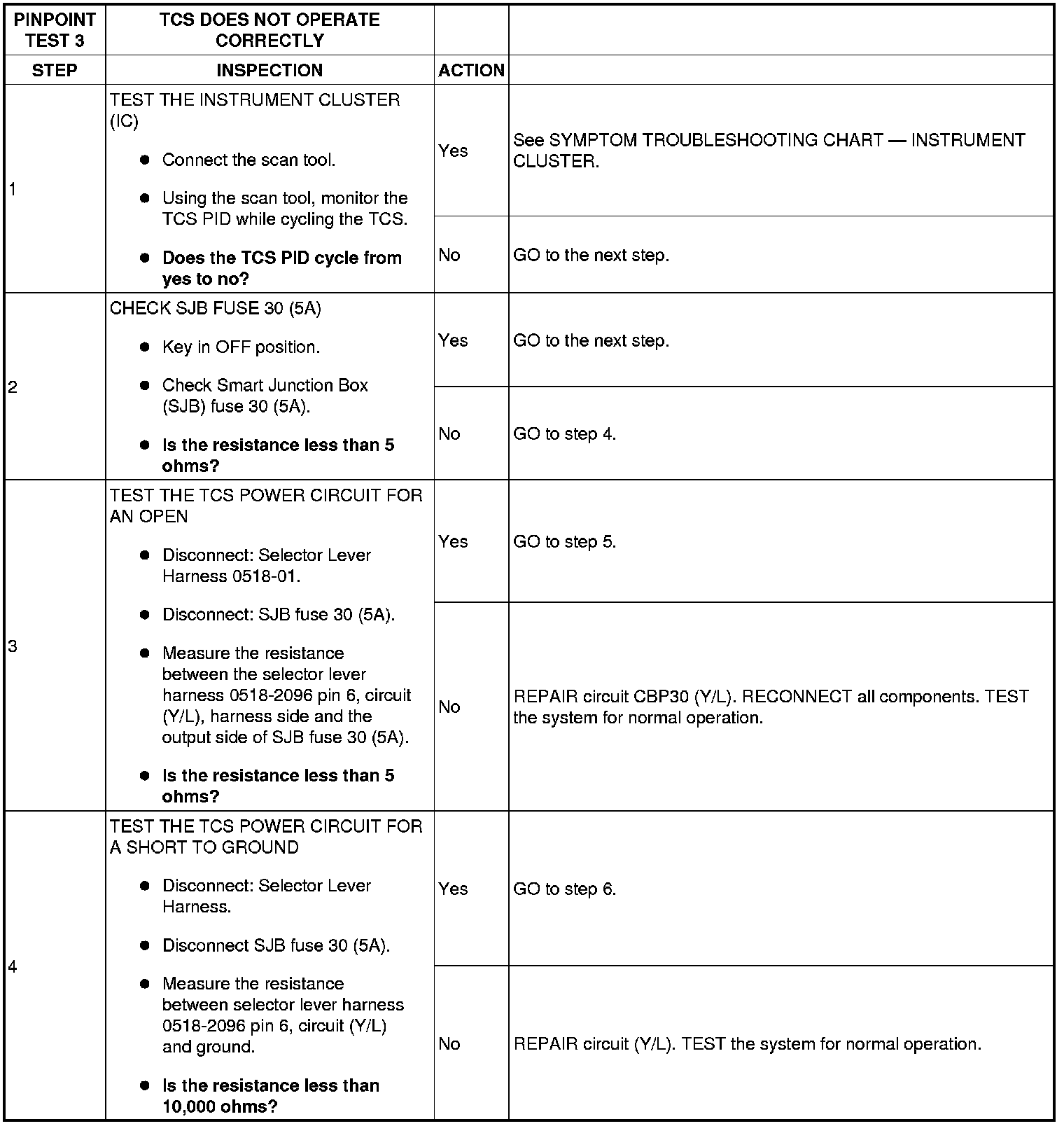

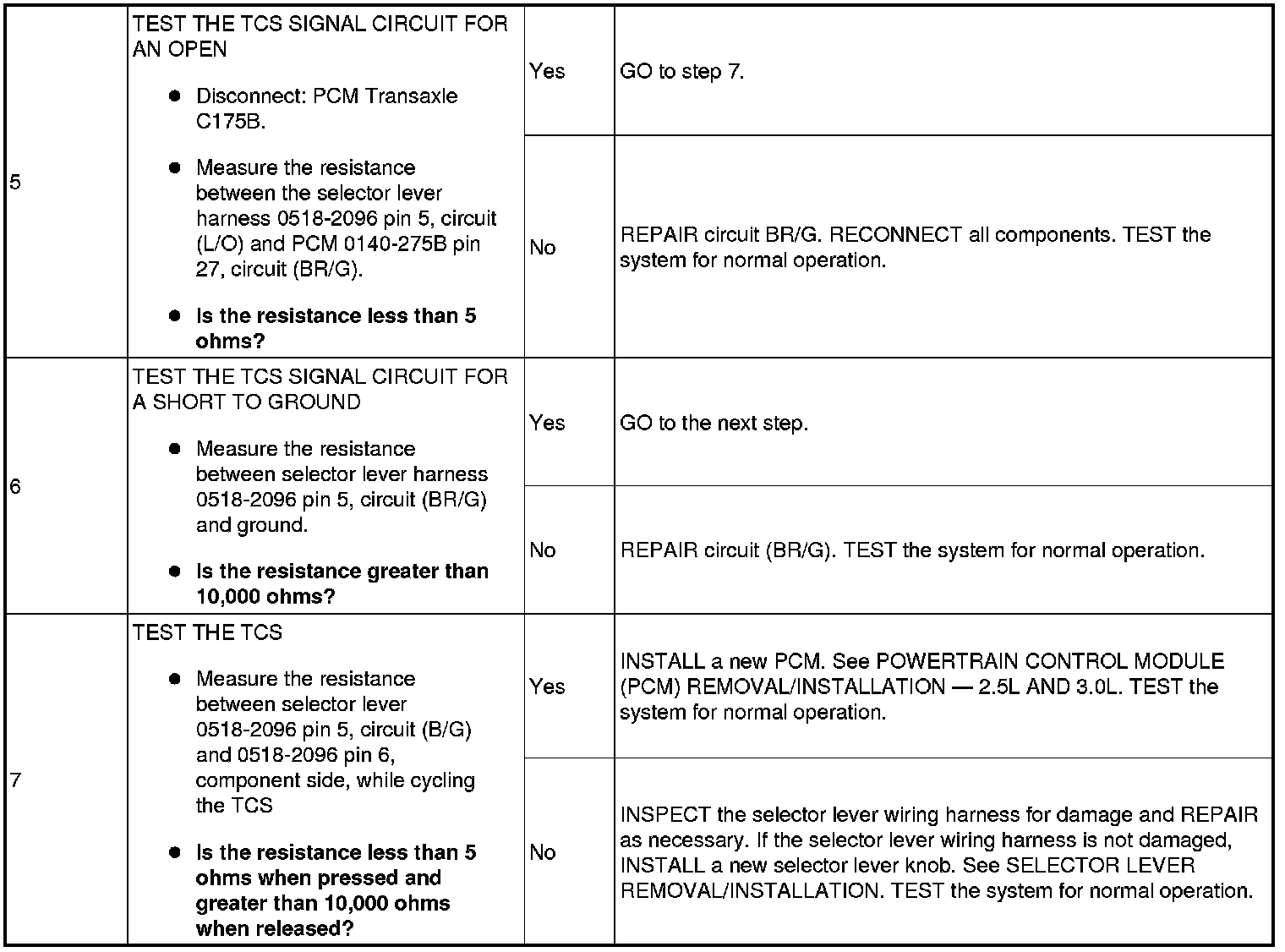

Pinpoint Test 3: Transmission Control Switch (TCS) Does Not Operate Correctly
PINPOINT TEST 3: TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY
