Exhaust Gas Recirculation: Locations

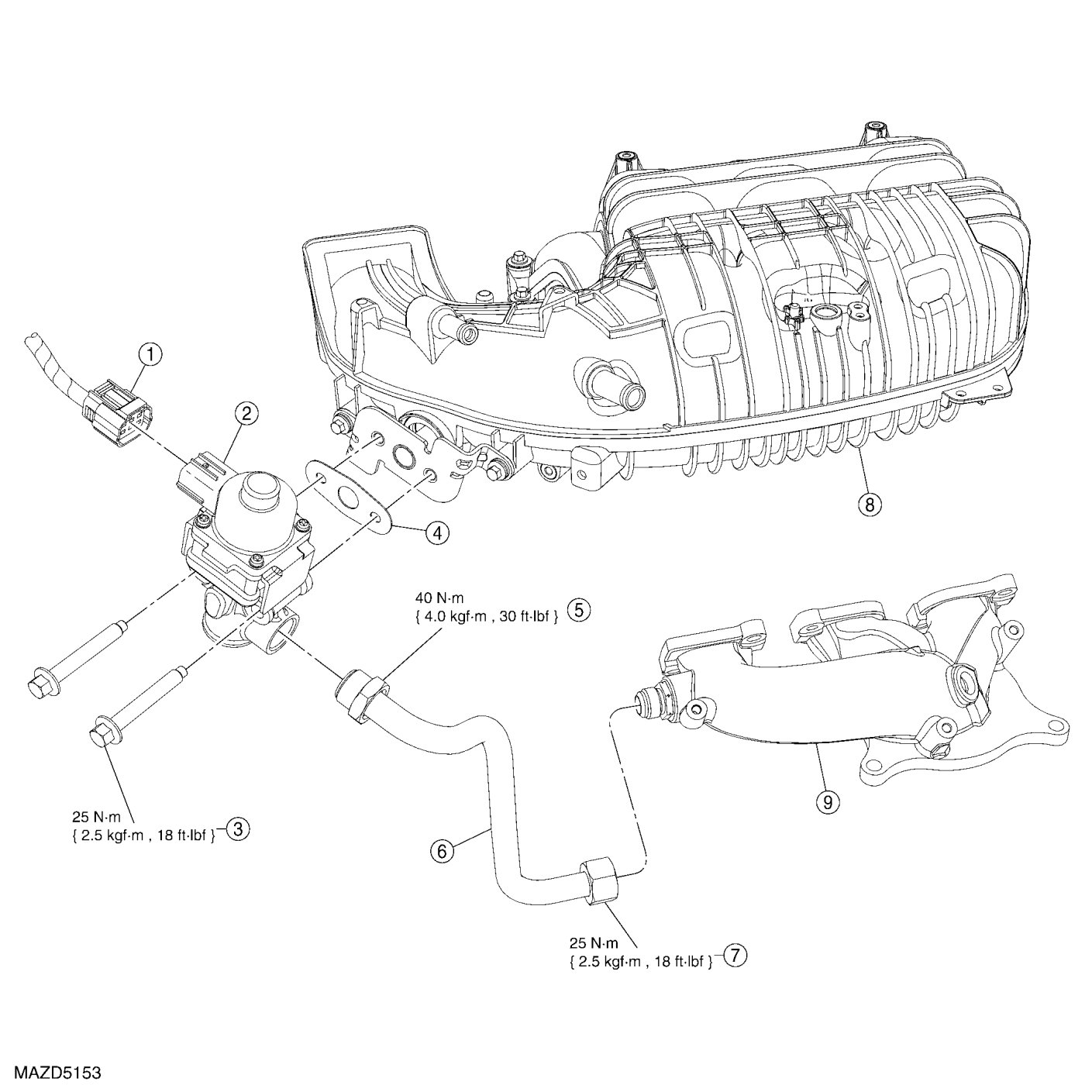

EXHAUST GAS RECIRCULATION (EGR) SYSTEM EXPLODED VIEW - 3.0L

1. For additional information, see - Service and Repair or - Service and Repair
