Pinpoint Test 4: No Power In Start

PINPOINT TEST 4: NO POWER IN START

Normal Operation

When the ignition switch is placed in START, fused ignition voltage is sent to:

- Fuse 35 (10A) in the battery junction box (BJB) along circuit (W/O).
- Smart junction box (SJB) J2280e pin 1, along circuit (W/O).
- SJB J2208b pin 45, along circuit (W/O).
- PCM 0140-175b pin 7 along circuit (L/W).
- SJB J2280b pin 32, along circuit (L/W).

Possible Causes
- Wiring, terminals or connectors
- Ignition switch
- SJB

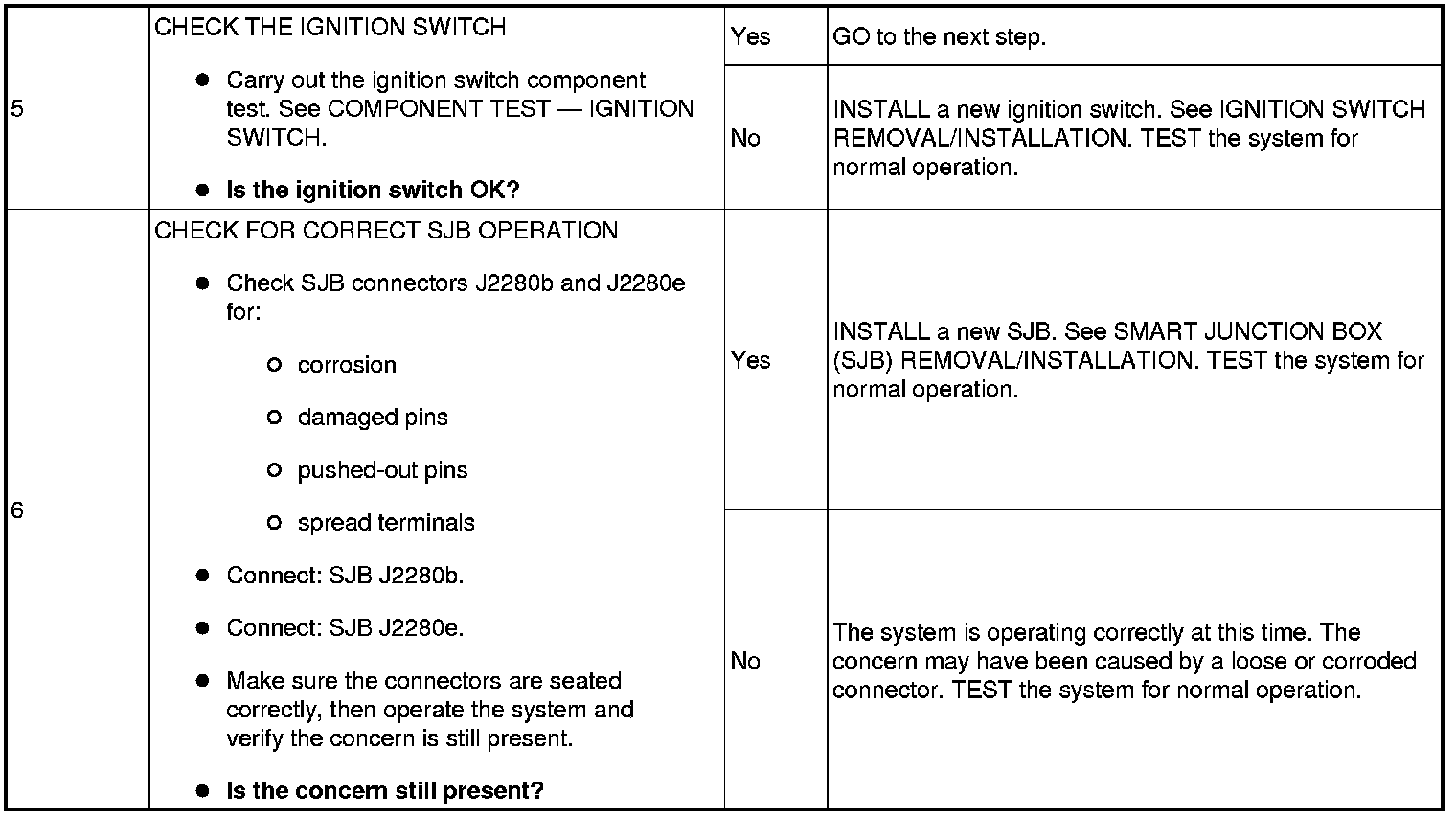

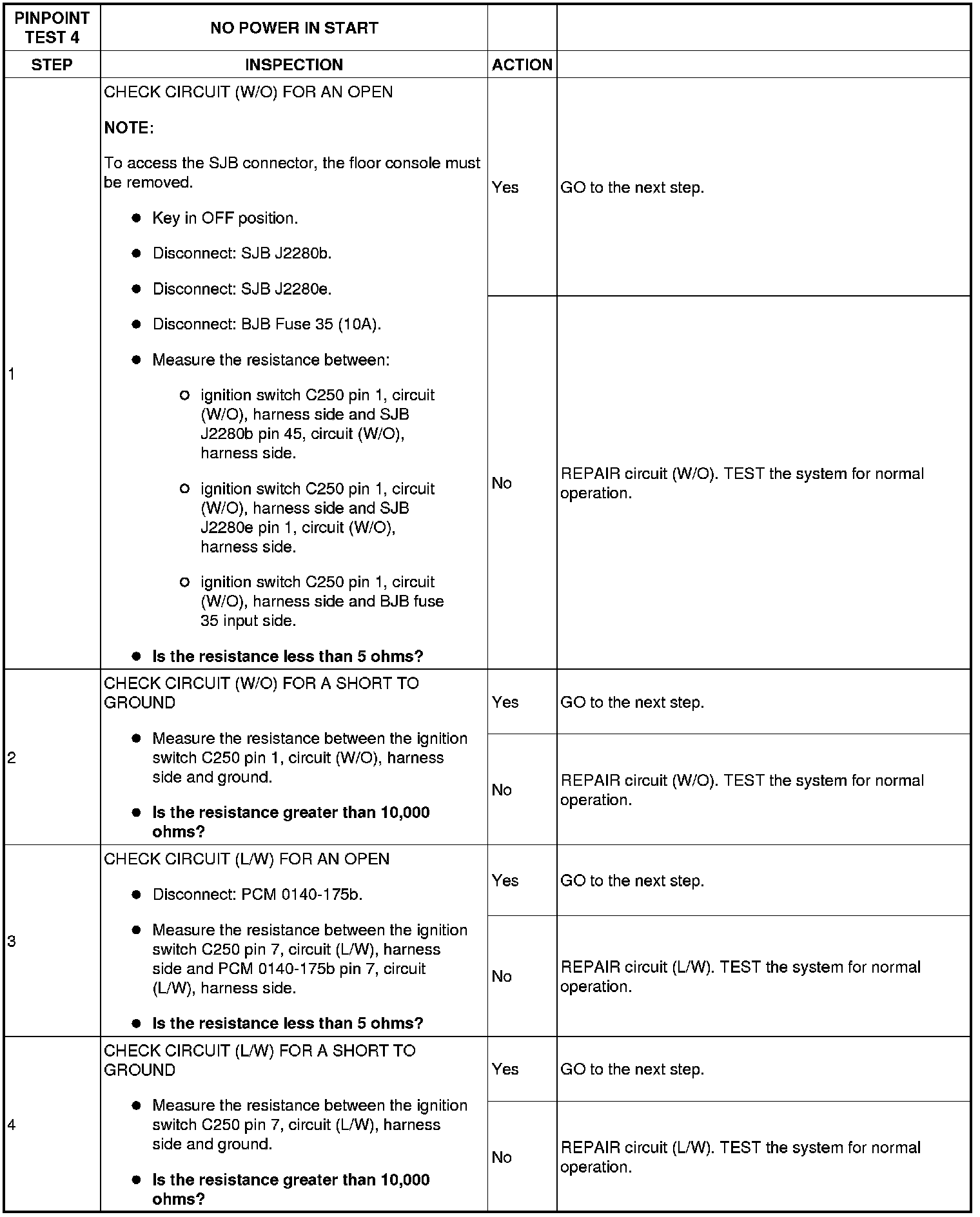

Diagnostic Procedure

CAUTION:Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
