Flywheel

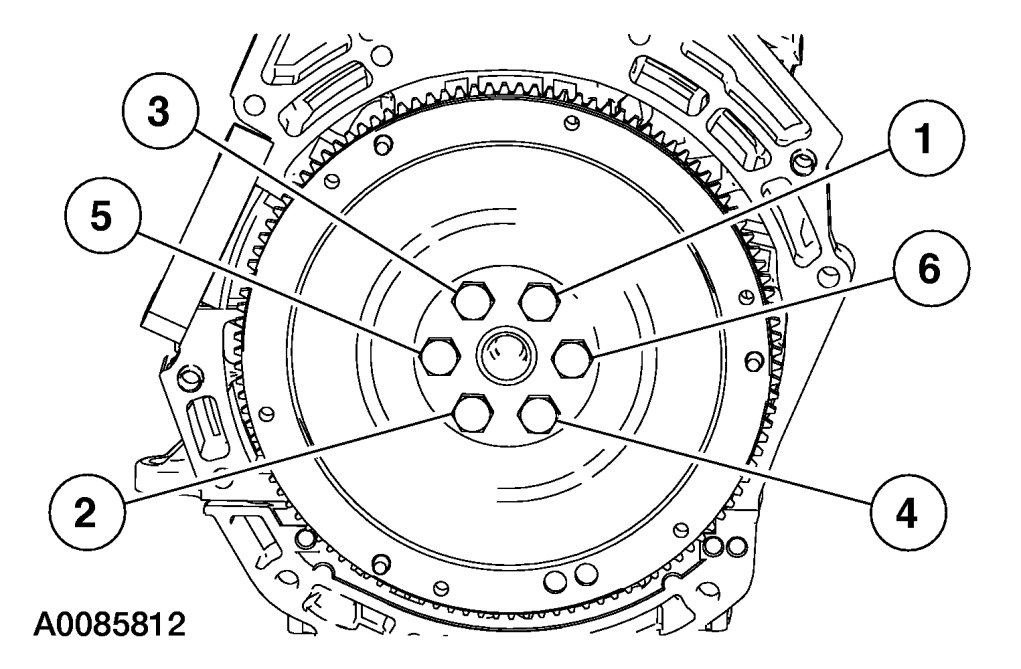

Tighten the bolts in the sequence shown in 3 stages.

Stage 1: Tighten to 50 Nm {5.1 kgf-m, 37 ft-lbf}.
Stage 2: Tighten to 80 Nm {8.2 kgf-m, 59 ft-lbf}.
Stage 3: Tighten to 112 Nm {11.4 kgf-m, 83 ft-lbf}.

NOTE: Special bolts are used for installation. Do not use standard bolts.
