Misfire Detection Monitor




MISFIRE DETECTION MONITOR

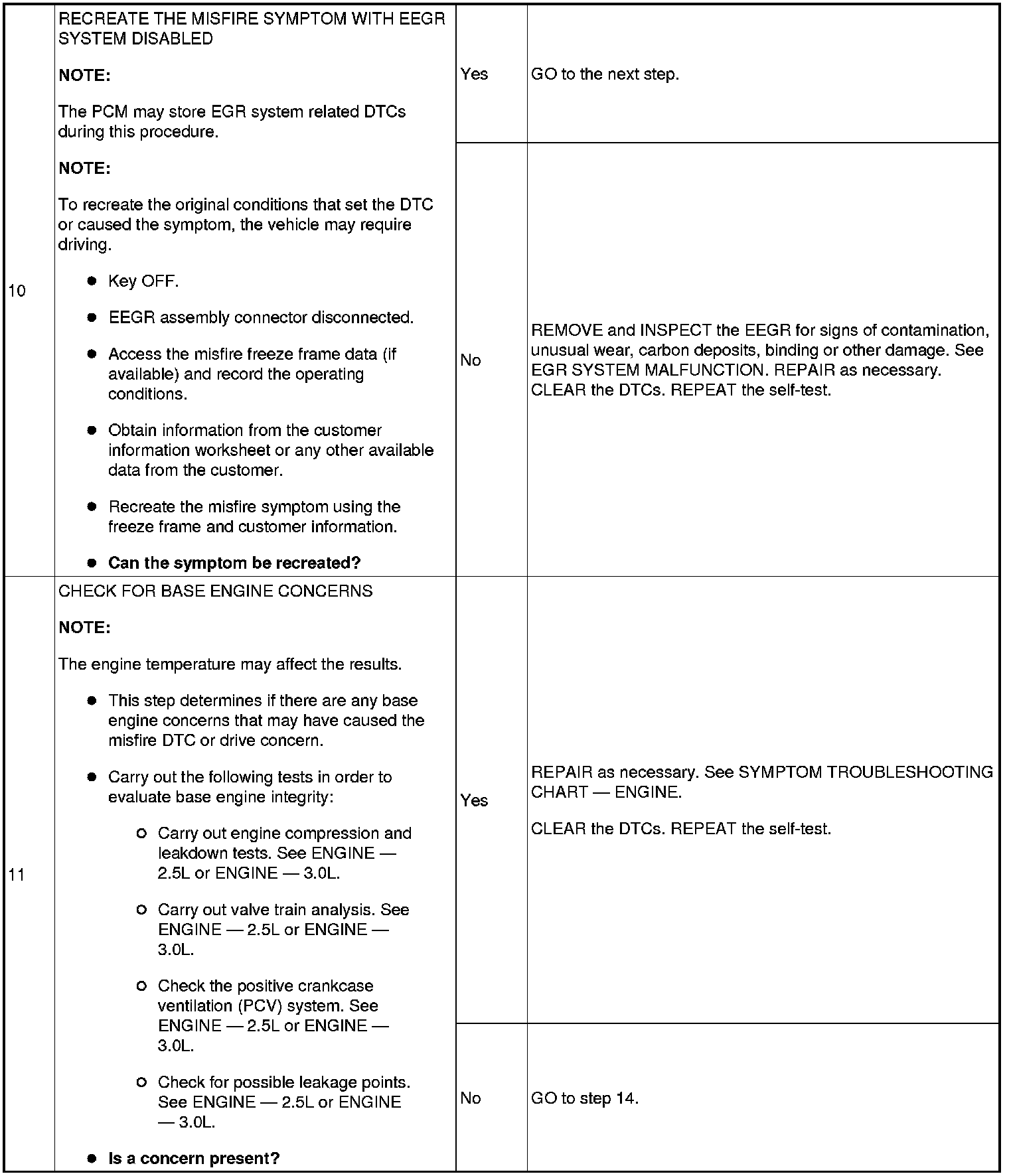

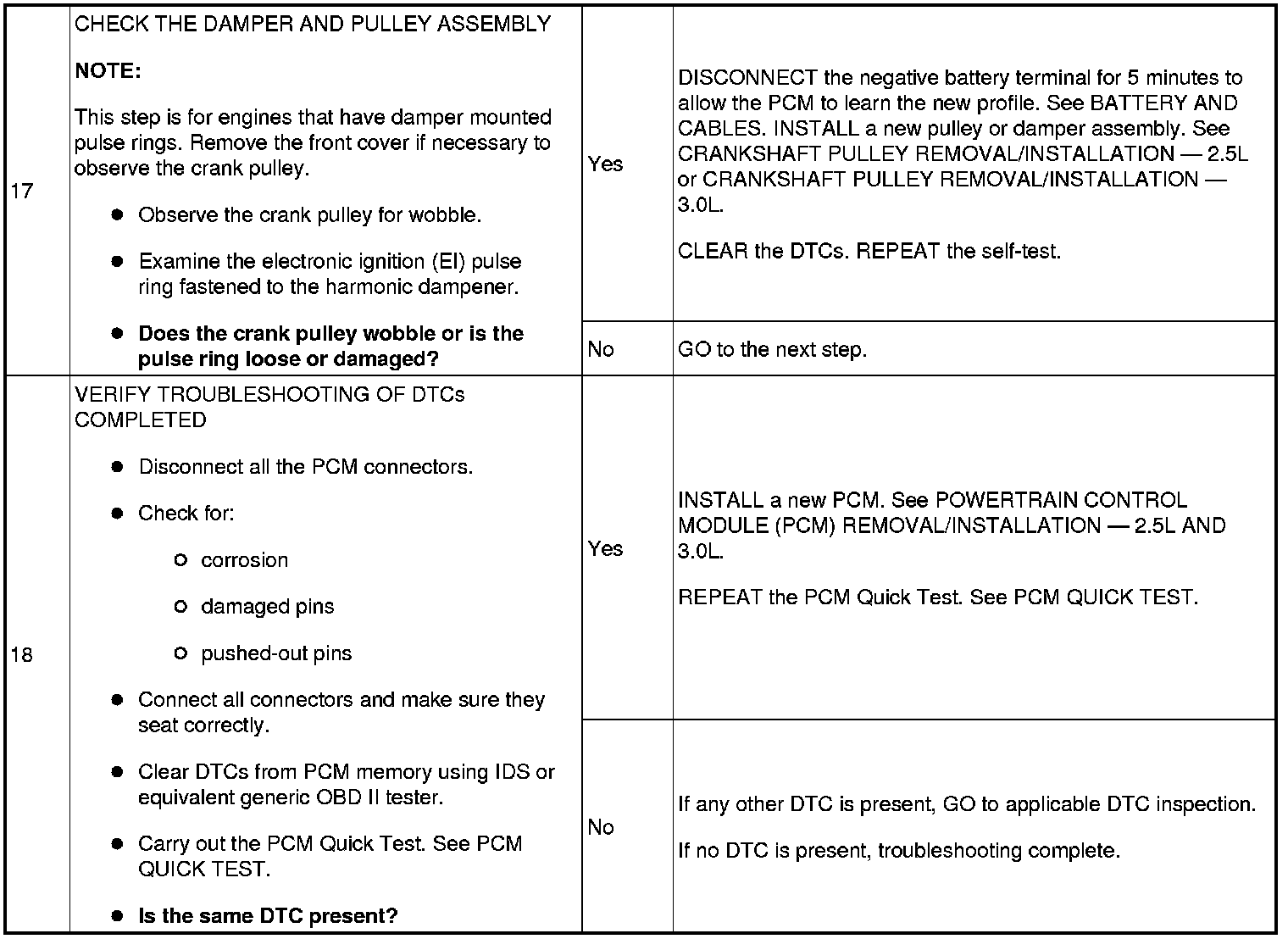

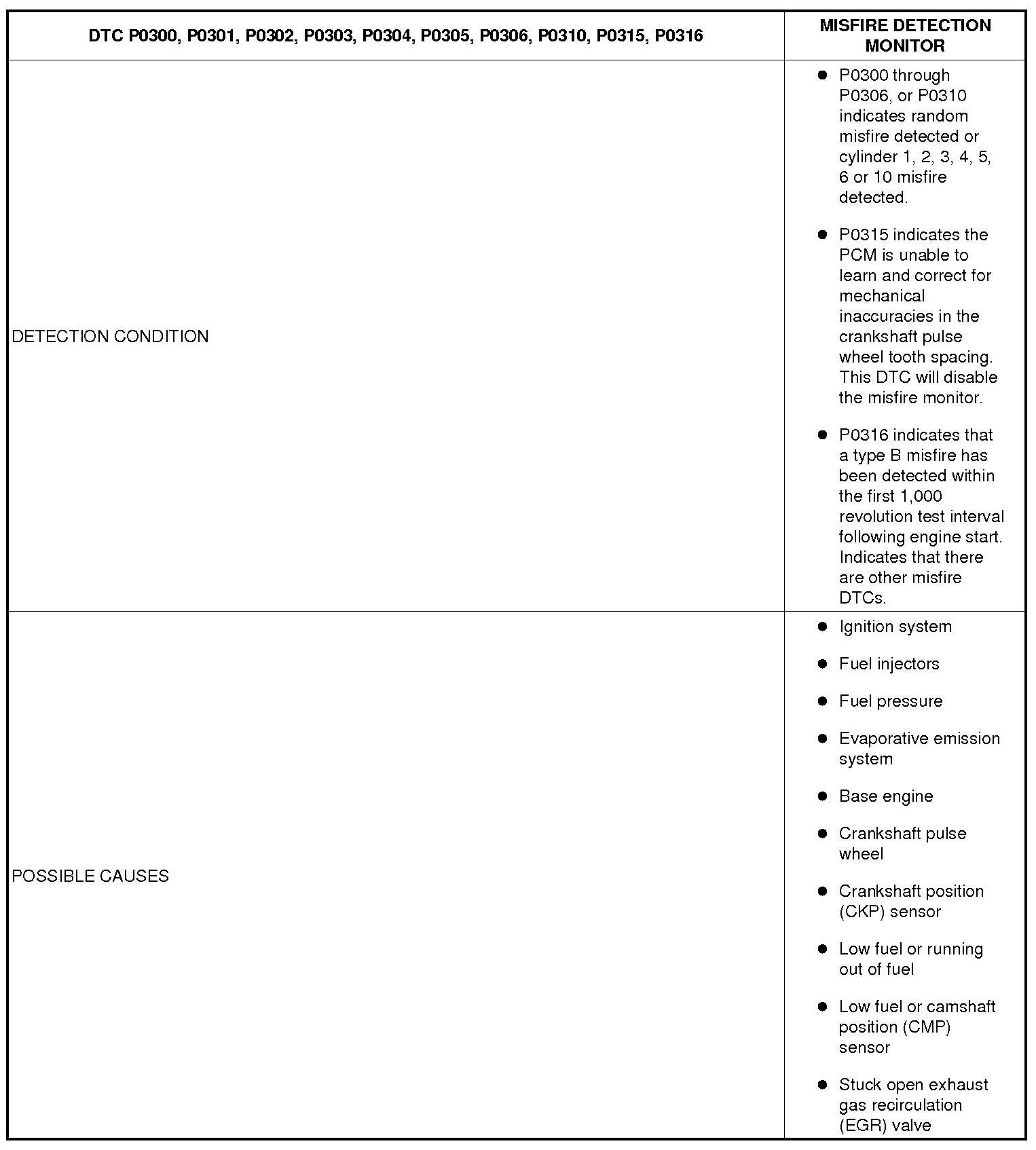

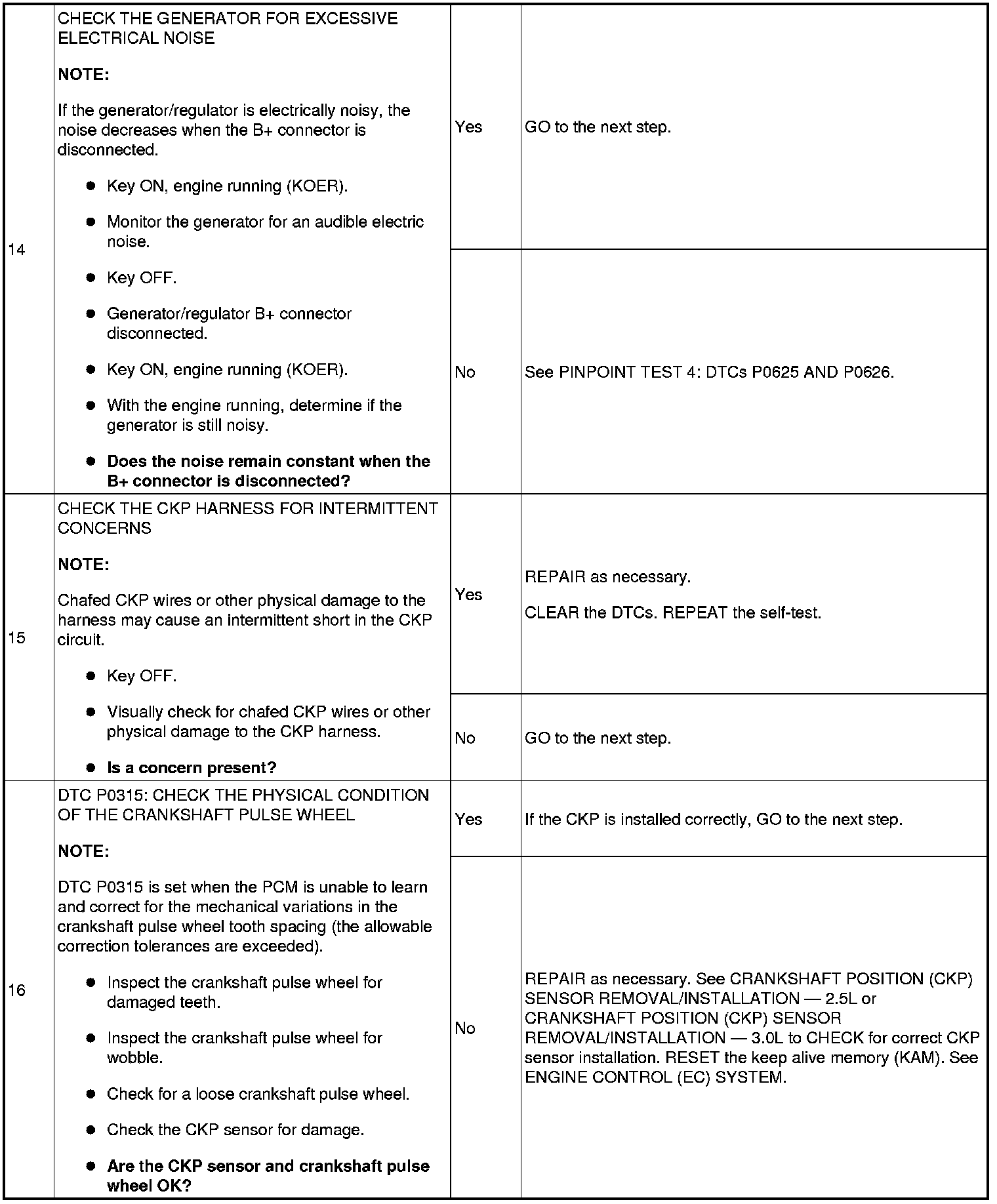

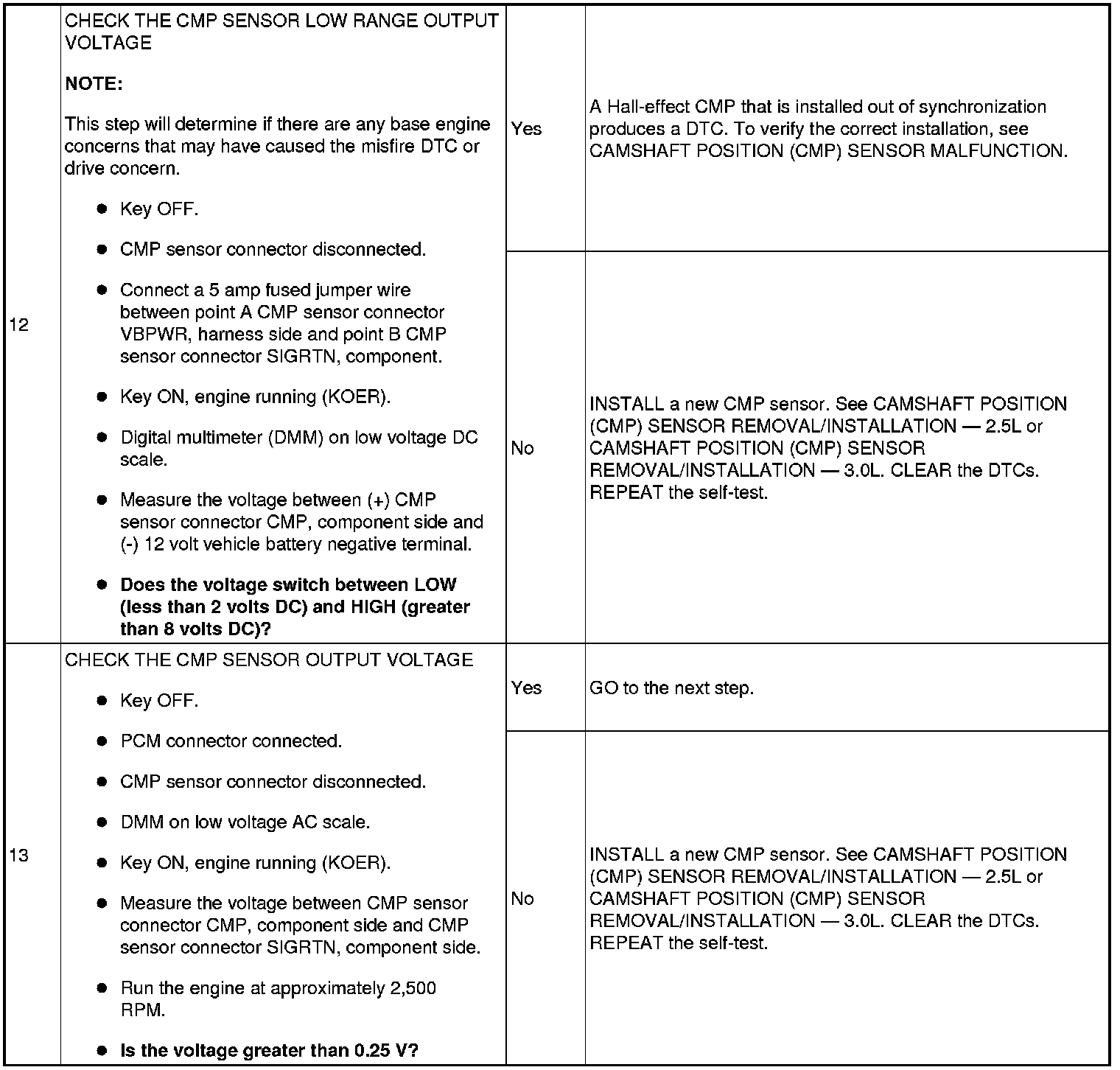

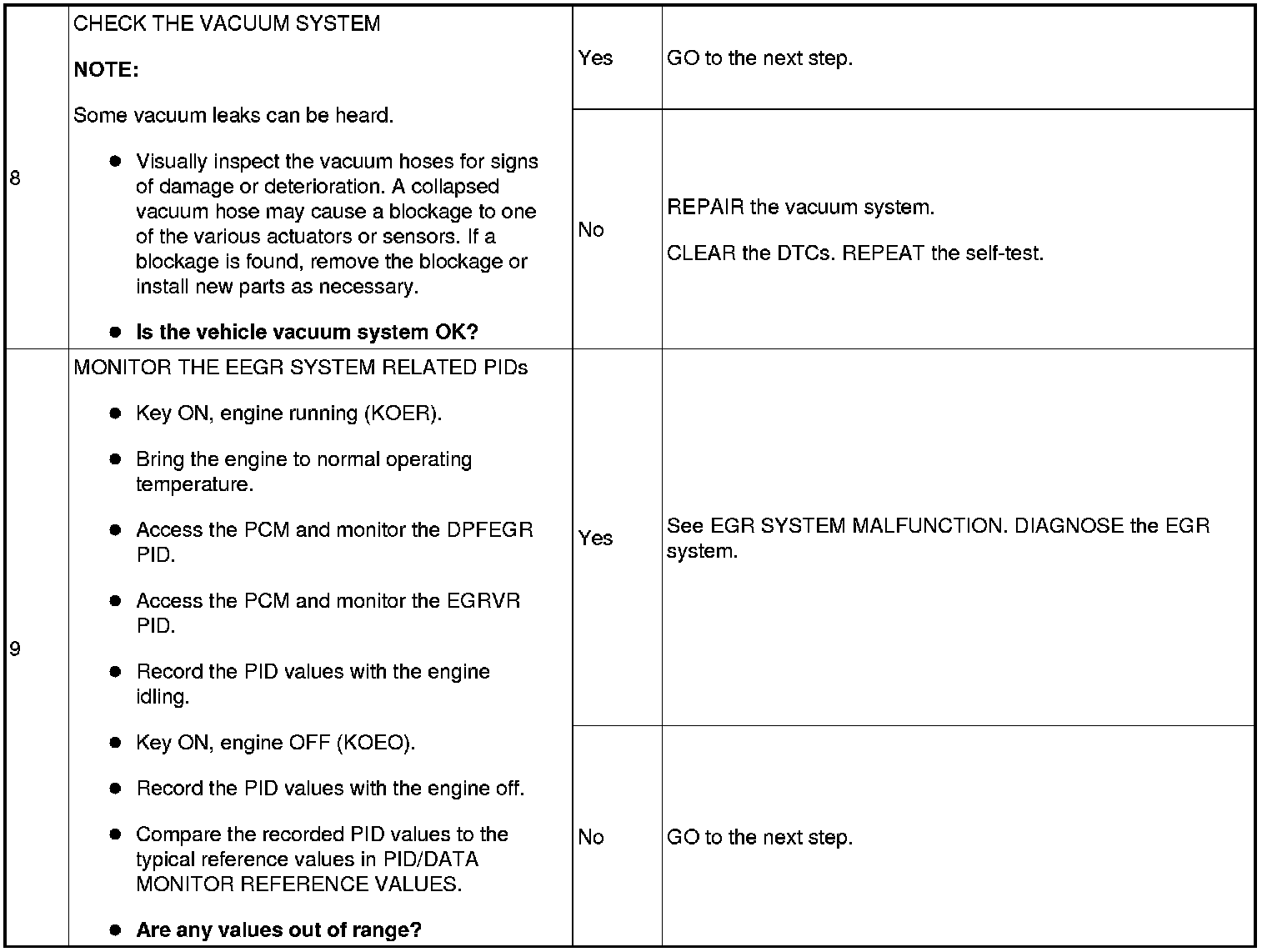

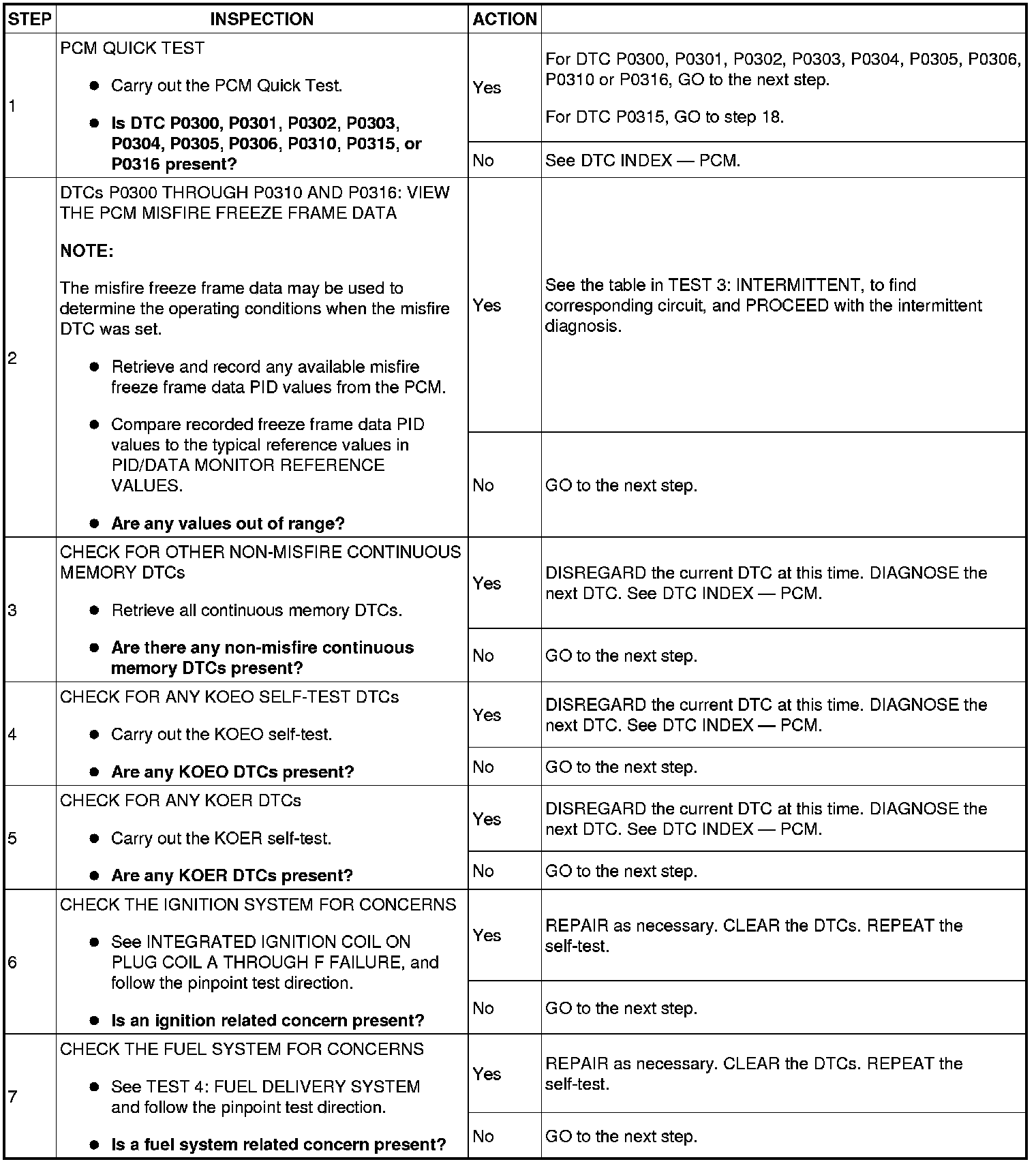

This pinpoint test is intended to diagnose the misfire detection monitor.Clearing the PCM DTCs erases any PCM recorded freeze frame data. Make sure to record any PCM freeze frame information before proceeding. See Engine Control (EC) System.
