Symptom Related Diagnostic Procedures

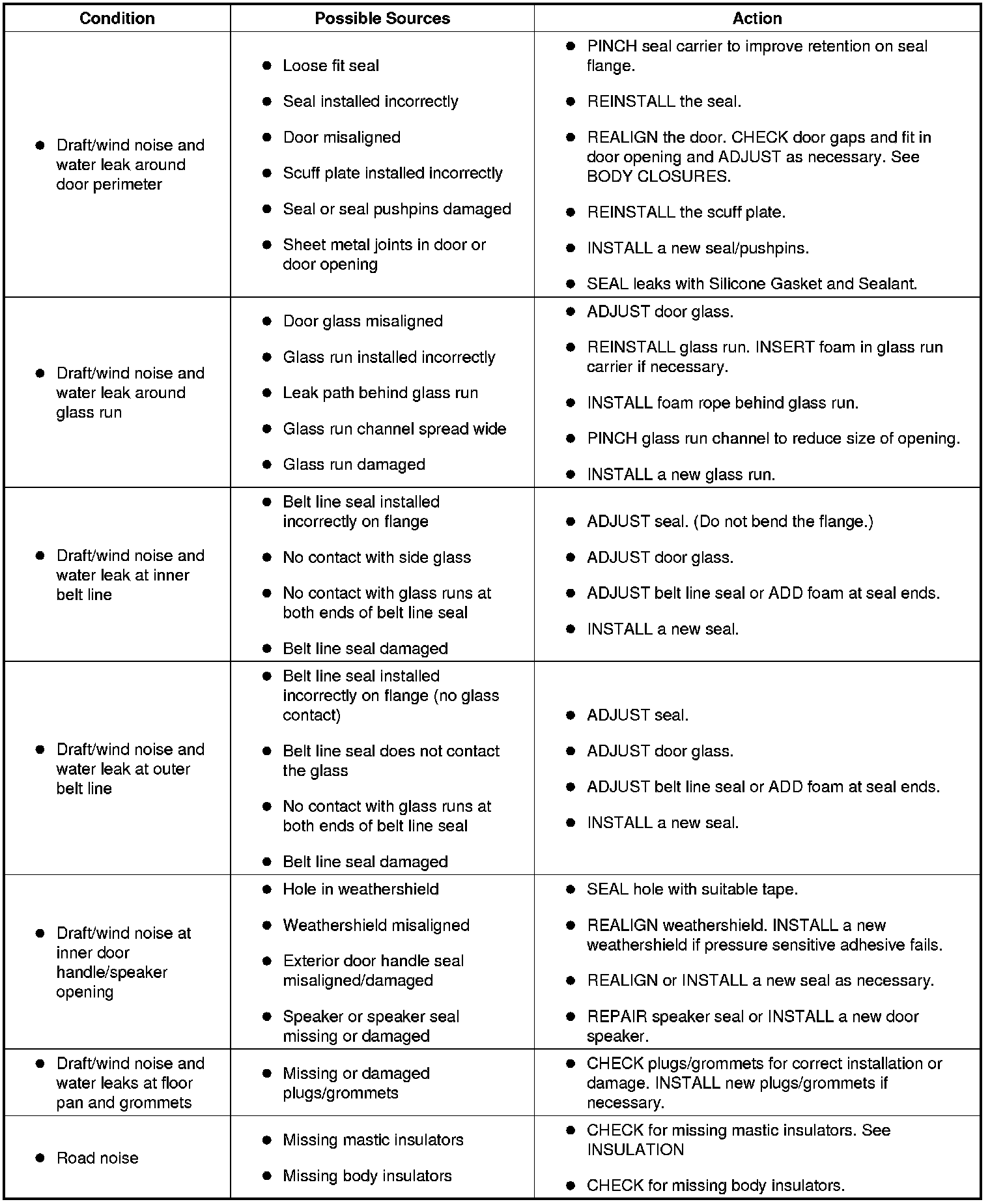

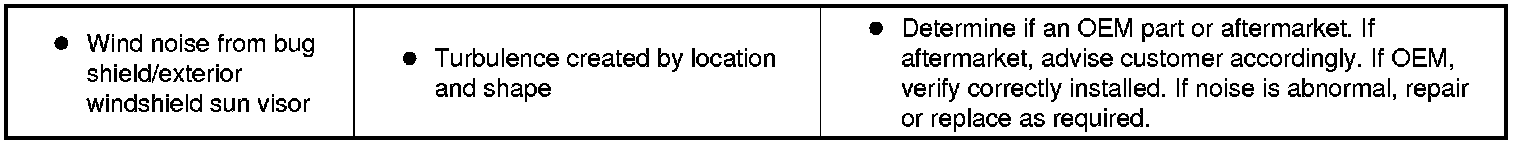

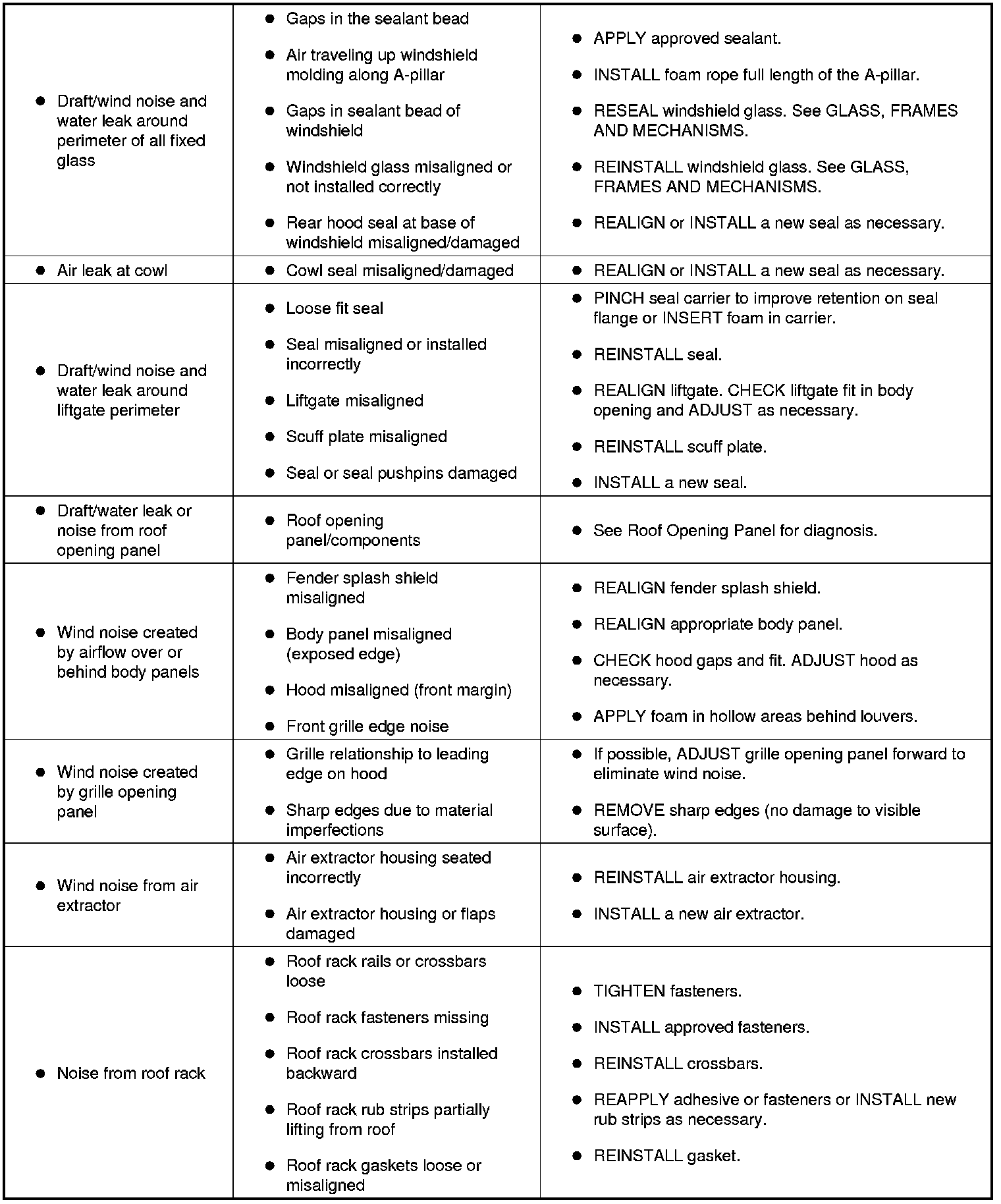

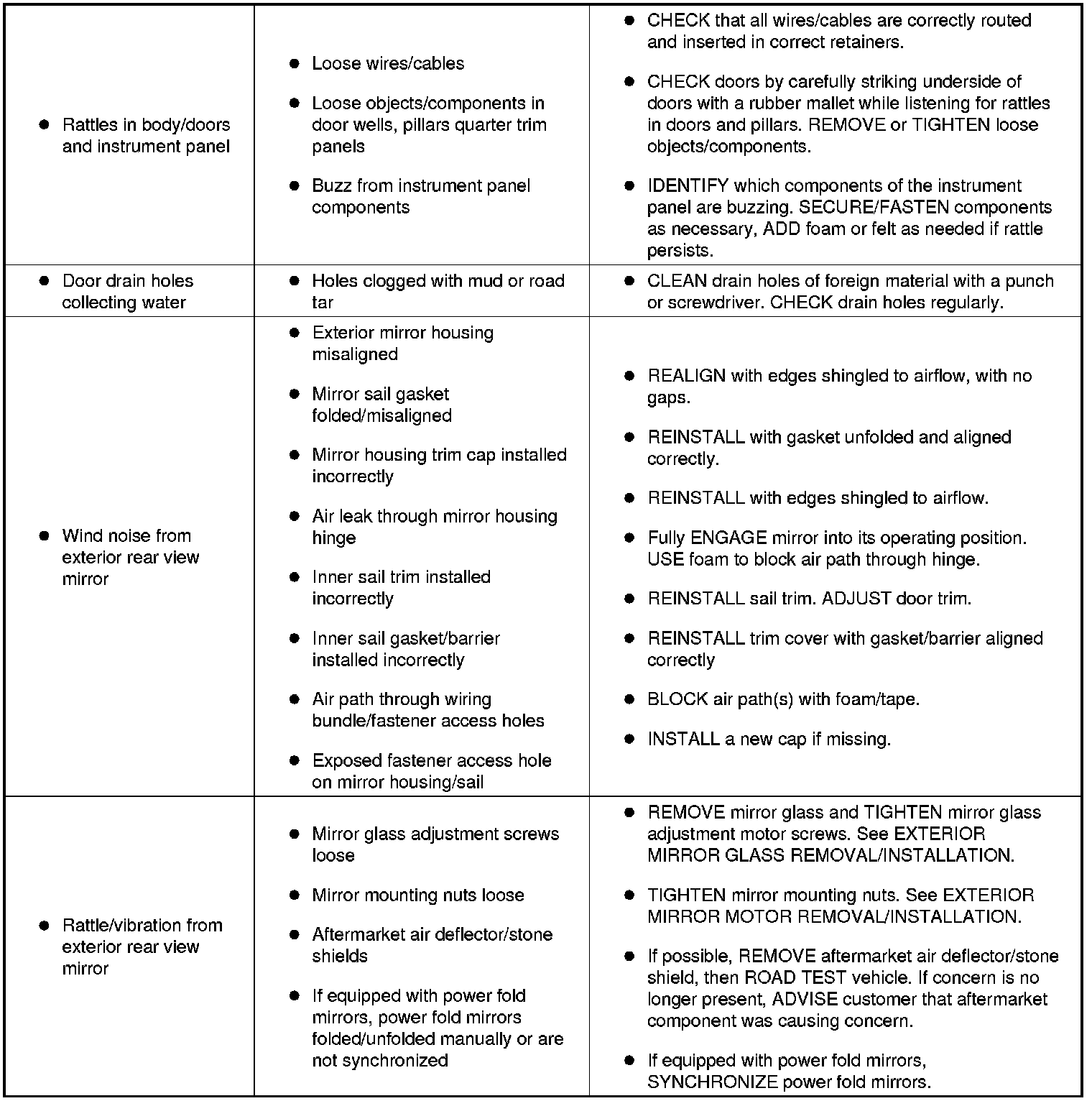

SYMPTOM TROUBLESHOOTING CHART - BODY

NOTE:Noise, vibration and harshness (NVH) symptoms should be identified using the diagnostic tools that are available. For a list of these tools, an explanation of their uses and a glossary of common terms, see Noise, Vibration And Harshness (NVH). Since it is possible that any one of multiple systems may be the cause of a symptom, it may be necessary to use a process of elimination type of diagnostic approach to pinpoint the responsible system. If this is not the causal system for the symptom, see Noise, Vibration And Harshness (NVH) for the next likely system and continue diagnosis.
