Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR REMOVAL/INSTALLATION









1. Remove the exterior mirror glass. See Exterior Mirror Glass Removal/Installation.

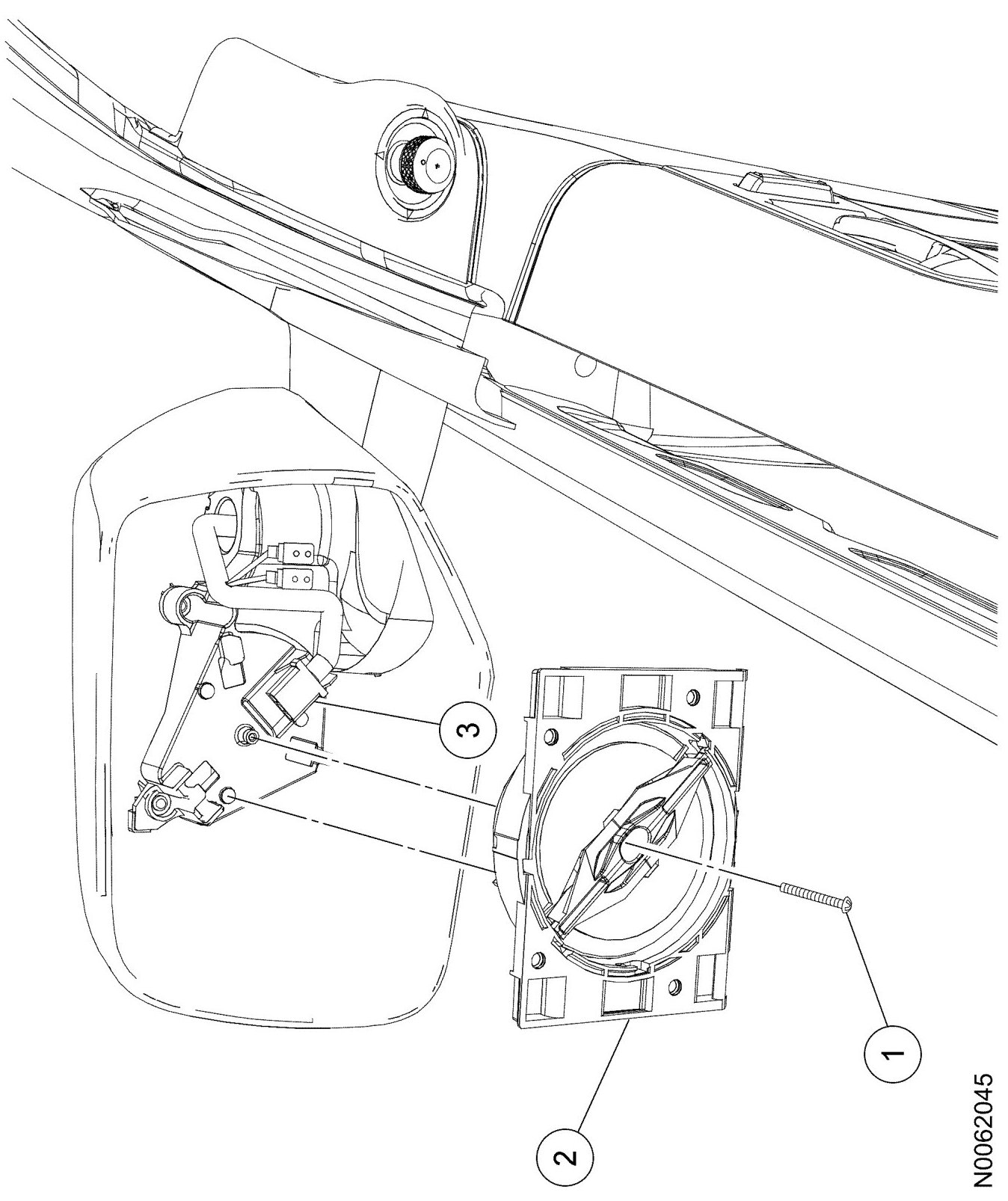

2. Remove the exterior mirror motor screw.

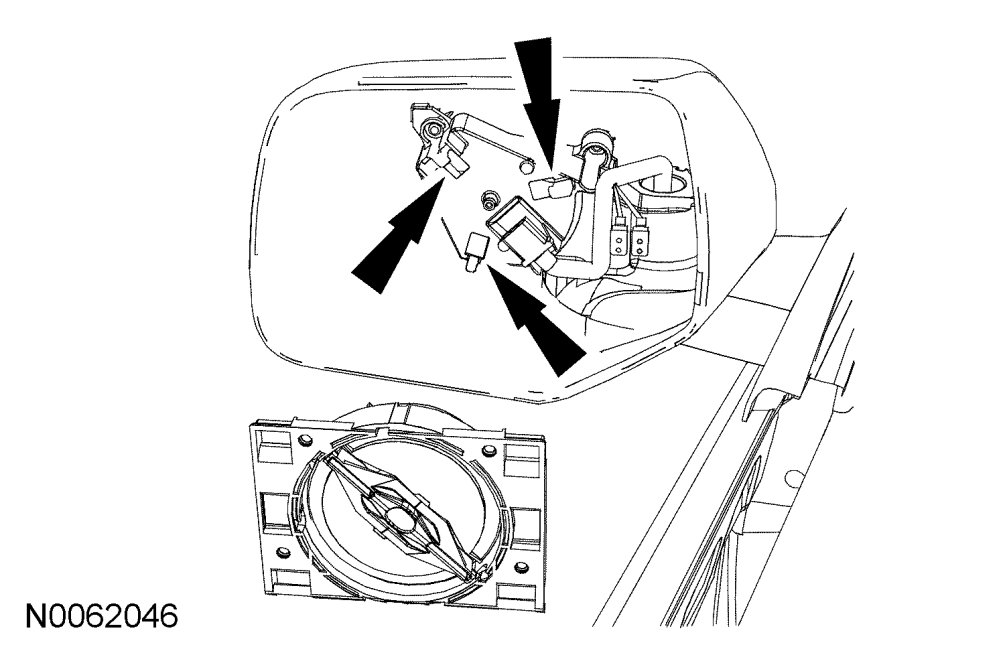

3. With a flat-blade tool, release the 3 exterior mirror motor tabs.

4. Remove the exterior mirror motor.

- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
