Full-Auto Air Conditioner

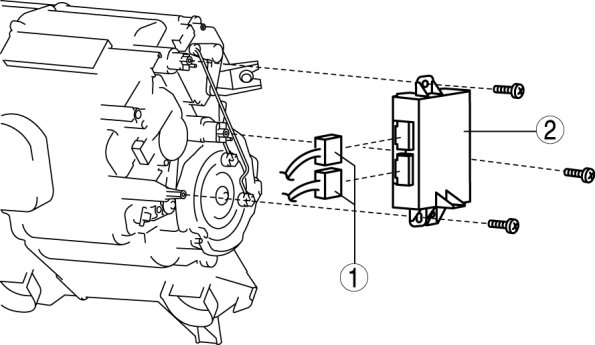

A/C AMPLIFIER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the TCM. (AT) Service and Repair

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
