Symptom Troubleshooting [Power Window System)
>>
Power Window System Wiring Diagram Power Window System (With Exterior Open/Close Function)
>>
Power Window Main Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Window Main Switch

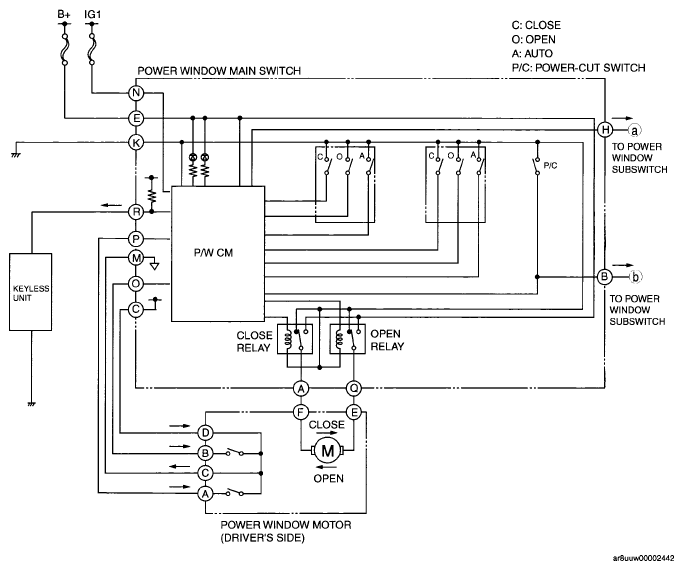

Fig 1: Power Window Main Switch - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
