Flywheel

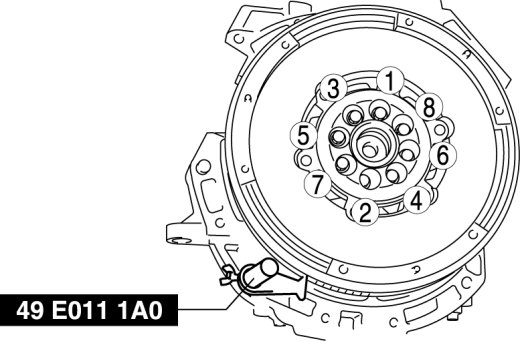

Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque 152-161 Nm {15.5-16.4 kgf-m, 113-118 ft-lbf}
