Engine Technical Data

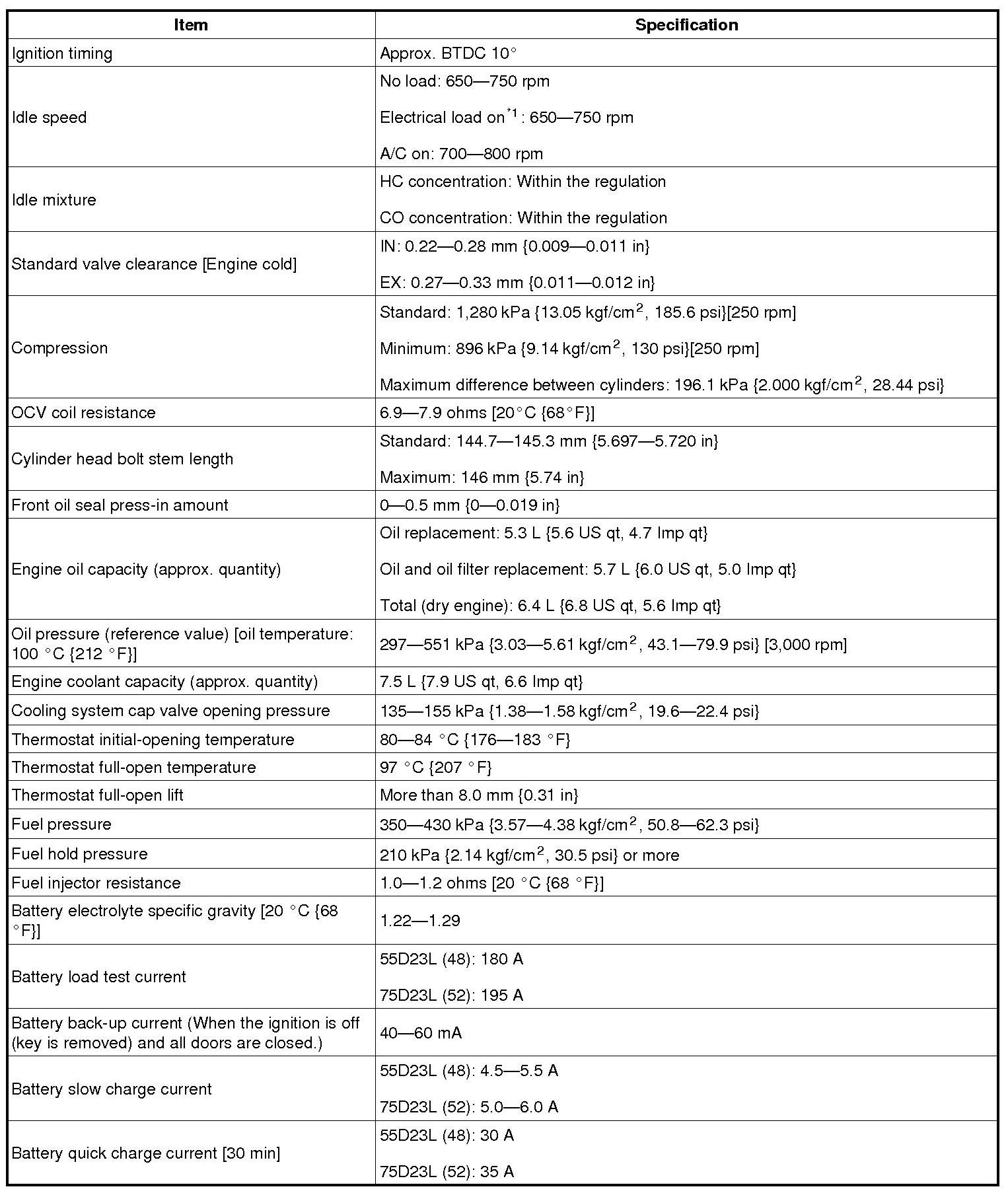

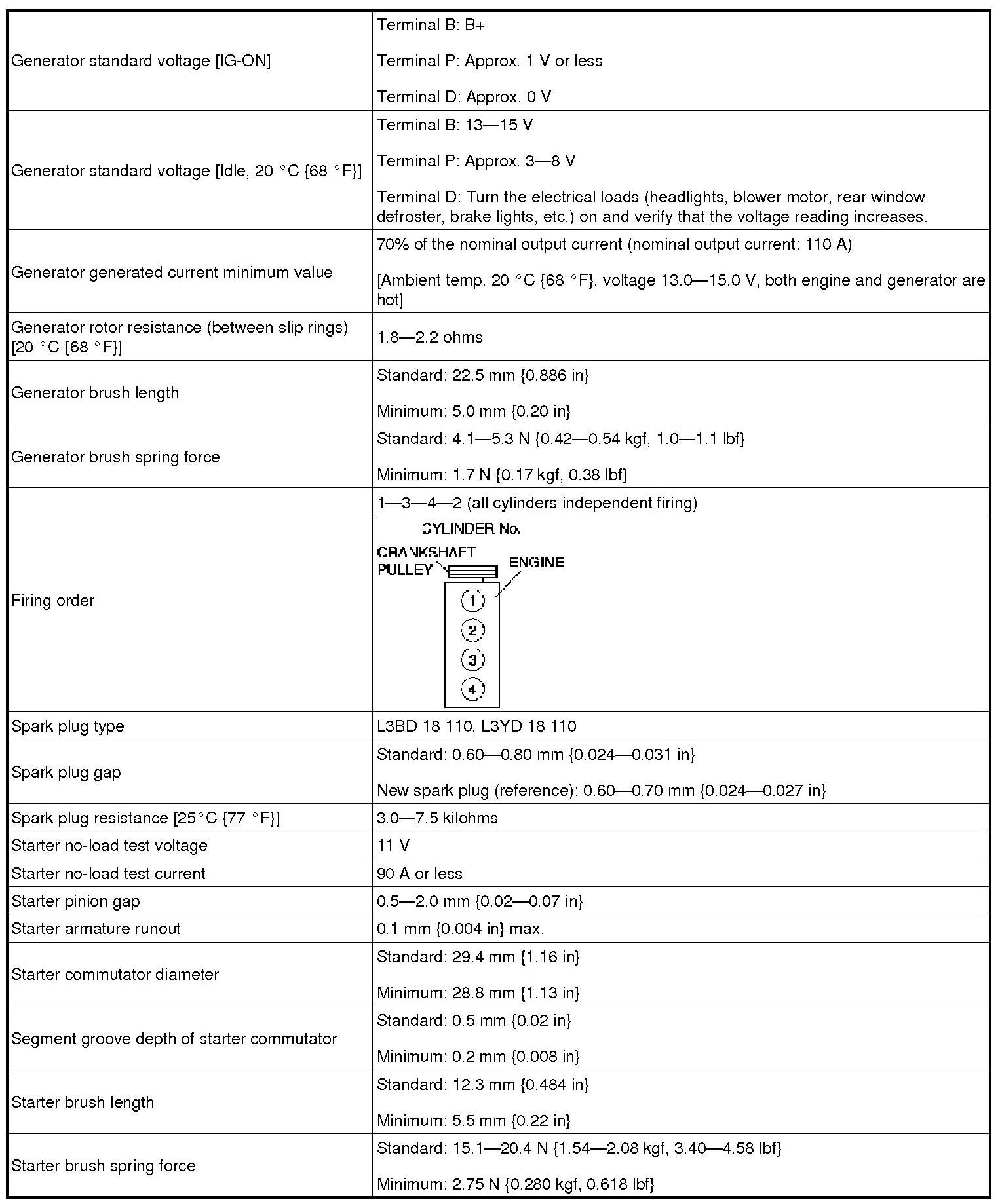

ENGINE TECHNICAL DATA [L3 WITH TC]









*1: When the following electrical loads are on: Headlights, rear defroster, cooling fan No.1, cooling fan No.2, and the blower motor (2-step or more.)

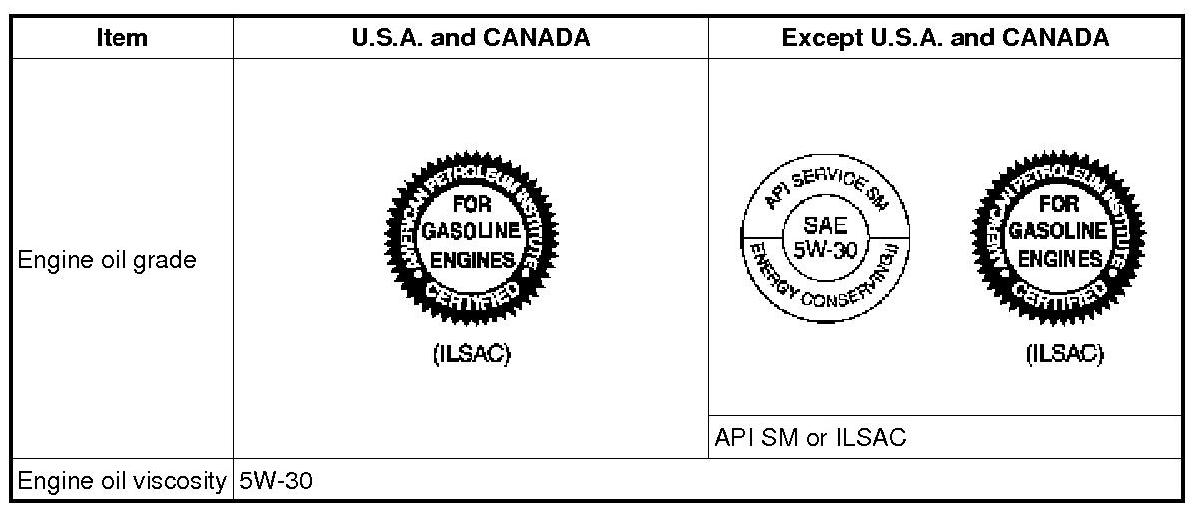

Engine oil specification
