Fuse: Service and Repair




MAIN FUSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

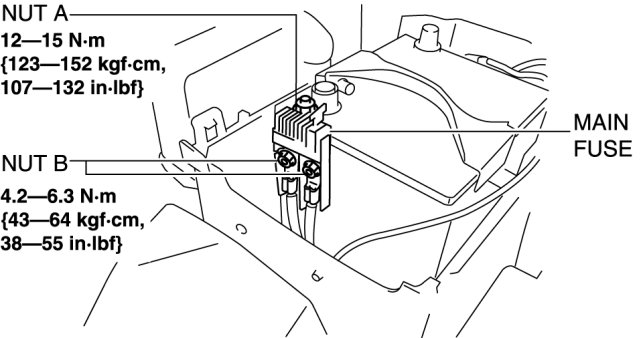

2. Remove nuts A and B shown in the figure.






3. Remove the main fuse.

4. Install in the reverse order of removal.
