Clearing Advanced Key




CLEARING ADVANCED KEY

1. Fully lower the driver-side door glass.

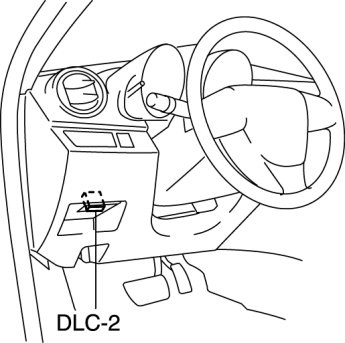

2. Connect the M-MDS to the DLC-2.






3. Pull out the M-MDS cable from the door glass opening and set the M-MDS outside the vehicle.

CAUTION:
- Protect the cable and body contact area with a clean rag, otherwise they could be damaged.

4. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

- Select "Body".
- Select "Security".
- Select "PATS Functions".

- When using the PDS (Pocket PC)

- Select "All Tests and Calibrations".
- Select "PATS Functions".

5. Then, select items from the screen menu in the following order.

- Select "Advanced Key Code Erase and Program".

6. Perform the security access according to the directions on the M-MDS screen.
