DTC P2128: App Sensor No. 2 Circuit High Input: Notes

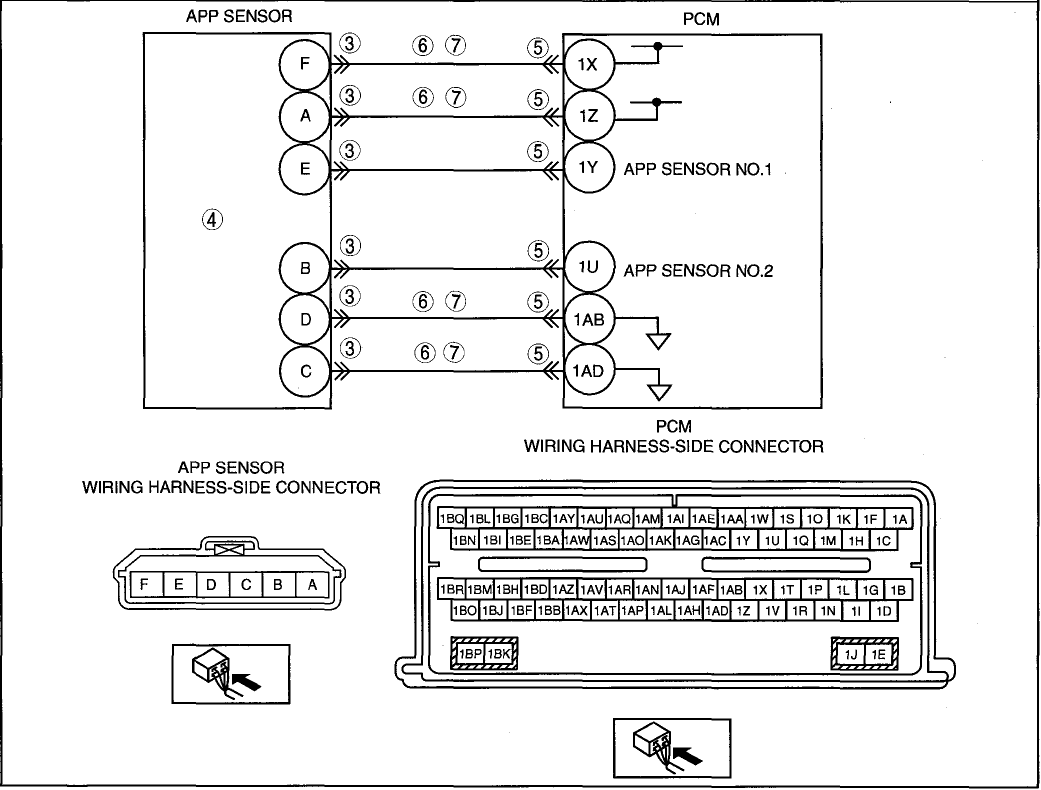

DTC P2128 CHART (MZI-3.7)

DTC P2128 APP sensor No. 2 circuit high input
DETECTION CONDITION
  • APP sensor No. 2 is out of self-test range high.
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • APP sensor malfunction
  • Open circuit wiring harness between APP sensor terminal F and PCM terminal 1X
  • Open circuit wiring harness between APP sensor terminal A and PCM terminal 1Z
  • Open circuit wiring harness between APP sensor terminal D and PCM terminal 1AB
  • Open circuit wiring harness between APP sensor terminal C and PCM terminal 1AD
  • Open circuit wiring harness between APP sensor terminal B and PCM terminal 1U
  • Short to power supply in wiring harness between APP sensor terminal F and PCM terminal 1X
  • Short to power supply in wiring harness between APP sensor terminal A and PCM terminal 1Z
  • Short to power supply in wiring harness between APP sensor terminal D and PCM terminal 1AB
  • Short to power supply in wiring harness between APP sensor terminal C and PCM terminal 1AD
  • Short to power supply in wiring harness between APP sensor terminal B and PCM terminal 1U
G00512233Courtesy of MAZDA MOTORS CORP.
