DTC P2127: App Sensor No. 2 Circuit Low Input: Notes

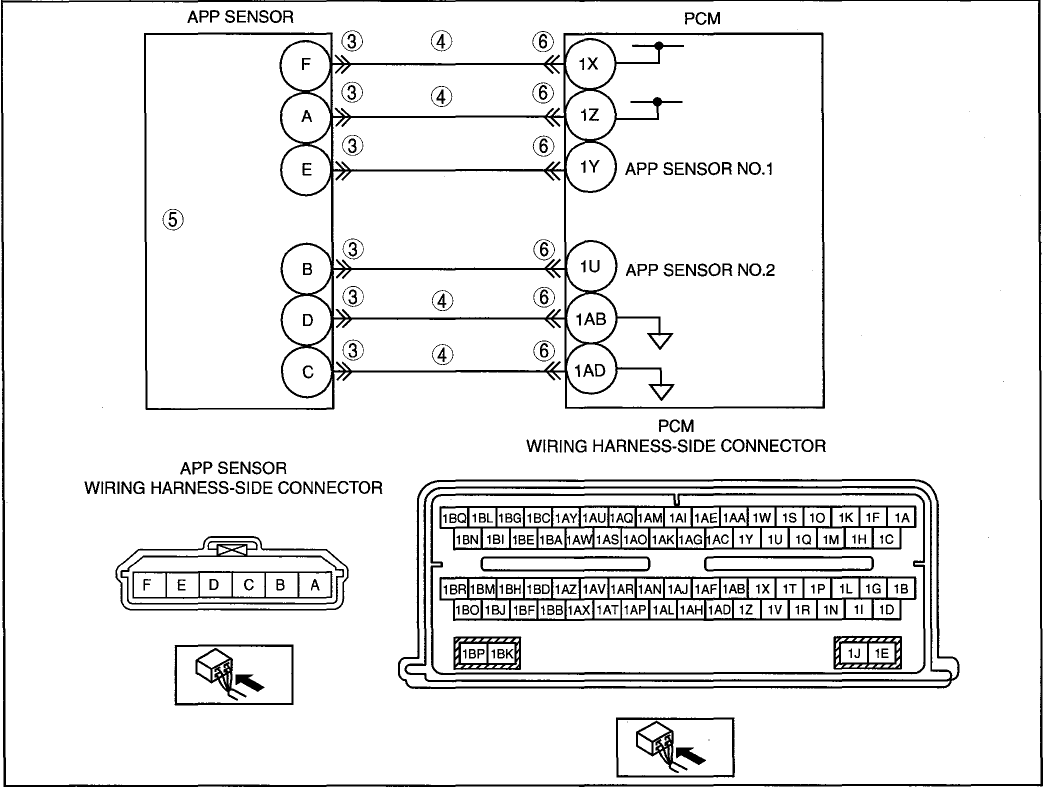

DTC P2127 CHART (MZI-3.7)
| DTC P2127 |
APP sensor No. 2 circuit low input |
| DETECTION CONDITION |
- APP sensor No. 2 is out of self-test range low.
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Short to ground circuit between APP sensor terminal F and PCM terminal 1X
- Short to ground circuit between APP sensor terminal A and PCM terminal 1Z
- Short to ground circuit between APP sensor terminal D and PCM terminal 1AB
- Short to ground circuit between APP sensor terminal C and PCM terminal 1 AD
- Short to ground circuit between APP sensor terminal B and PCM terminal 1 U
- APP sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
