DTC P2122: App Sensor No. 1 Circuit Low Input: Notes

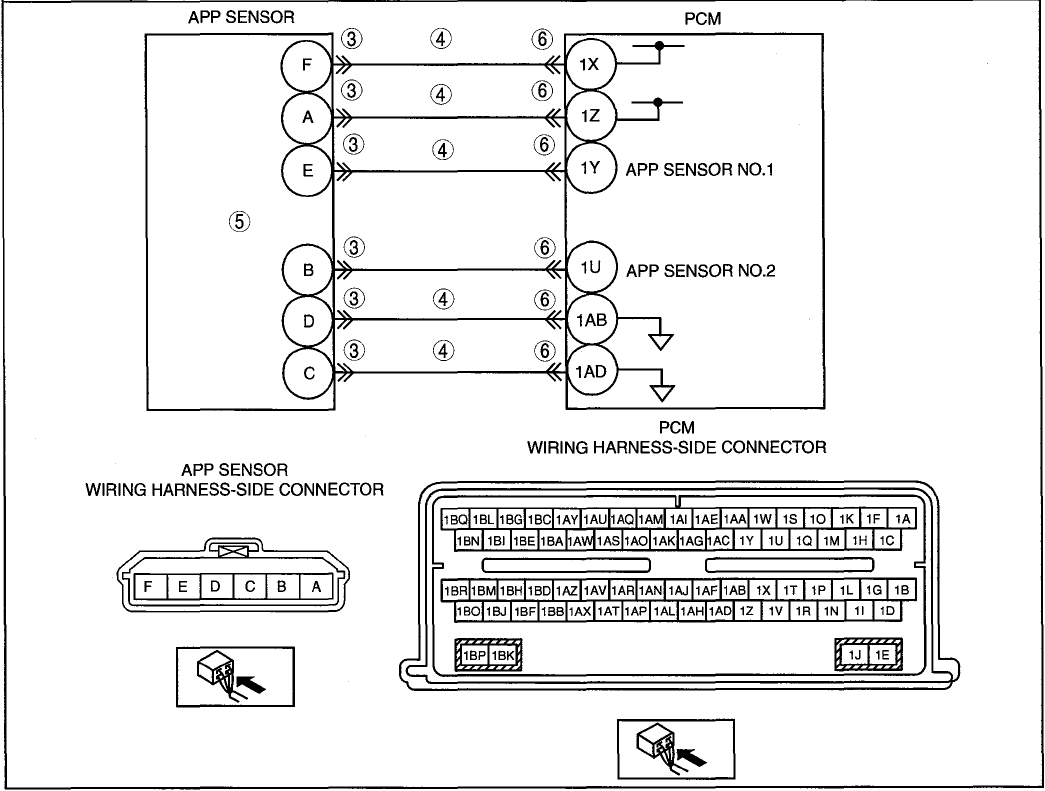

DTC P2122 CHART (MZI-3.7)
| DTC P2122 |
APP sensor No. 1 circuit low input |
| DETECTION CONDITION |
- APP sensor No. 1 is out of self-test range low.
|
| POSSIBLE CAUSE |
- Short to ground circuit between APP sensor terminal F and PCM terminal 1X
- Short to ground circuit between APP sensor terminal A and PCM terminal 1Z
- Short to ground circuit between APP sensor terminal D and PCM terminal 1 AB
- Short to ground circuit between APP sensor terminal C and PCM terminal 1 AD
- Short to ground circuit between APP sensor terminal E and PCM terminal 1 Y
- APP sensor malfunction
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
