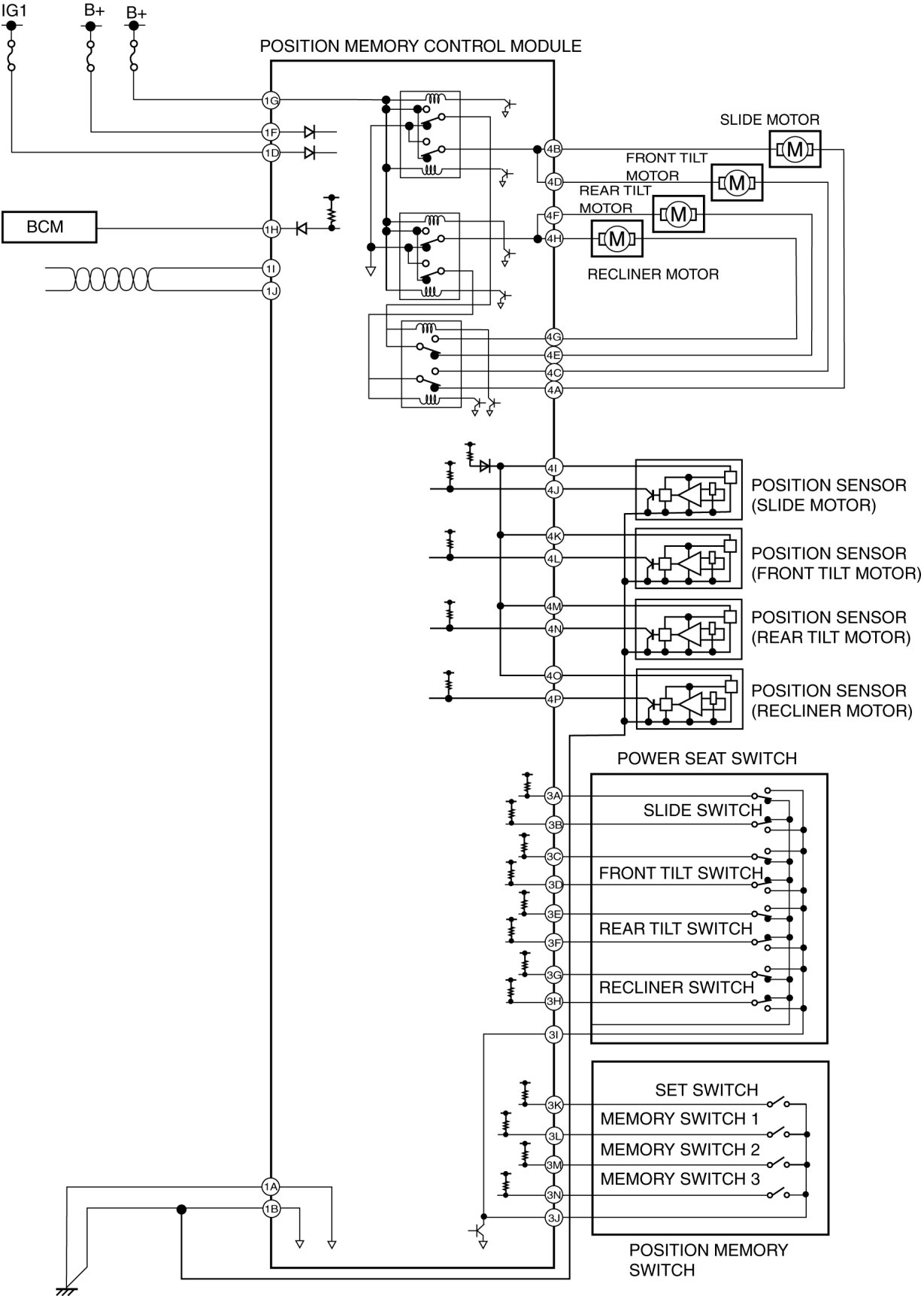

System Wiring Diagram - Position Memory Control System




SYSTEM WIRING DIAGRAM [POSITION MEMORY CONTROL SYSTEM]
