Front Axle Location Index

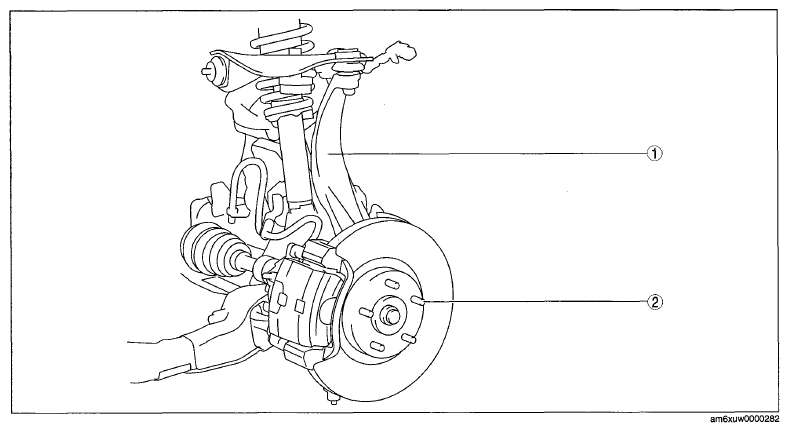

Fig 1: Front Axle Components Location

Courtesy of MAZDA MOTORS CORP.

FRONT AXLE REFERENCE CHART

1	Wheel hub, steering knuckle (See WHEEL HUB, STEERING KNUCKLE INSPECTION .) (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .) (See WHEEL HUB, STEERING KNUCKLE DISASSEMBLY/ASSEMBLY .)
2	Hub bolt (See FRONT WHEEL HUB BOLT REPLACEMENT .)
