Flywheel

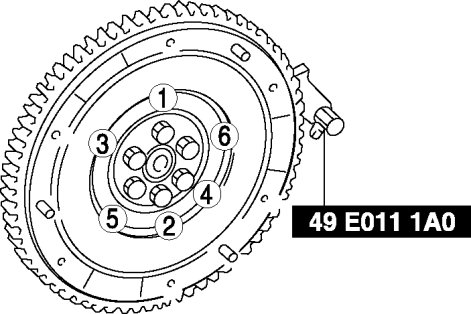

Temporarily tighten the lock bolts uniformly in the order of the numbers shown in the figure and install the flywheel.

Tighten the lock bolts in three steps in the order shown in the figure.
1st: 46-54 Nm {4.7-5.5 kgf-m, 34-39 ft-lbf}
2nd: 76-84 Nm {7.8-8.5 kgf-m, 57-61 ft-lbf}
3rd: 108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
