EGR Valve: Testing and Inspection

EGR VALVE INSPECTION [MZR 2.5]

Resistance Inspection

1. Disconnect the negative battery cable. Removal and Replacement

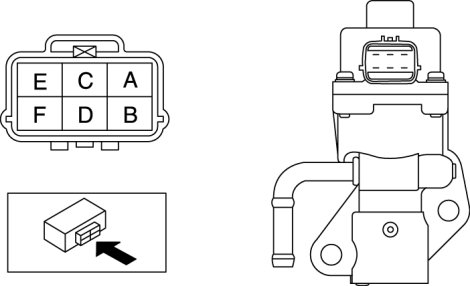

2. Disconnect the EGR valve connector.

3. Measure the resistance between the EGR valve terminals.

- If not within the specification, replace the EGR valve. Service and Repair
