Rear Wheel Alignment

REAR WHEEL ALIGNMENT

Specification (Unloaded)*1

Rear wheel alignment





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

Total Toe-in Adjustment

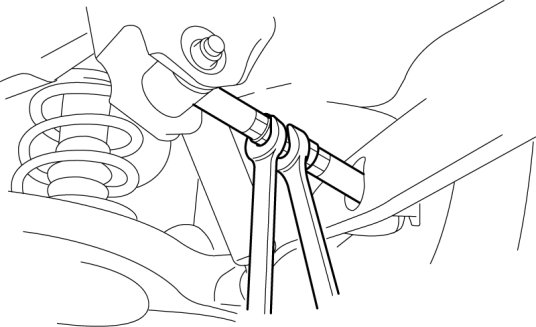

1. Loosen the locknut of the lateral link.






2. Adjust the toe-in turning the adjusting link.






Total toe-in
- 2 ±4 mm {0.08 ±0.16 in}

NOTE:
- Toe change amount: 0°21'/ one rotation

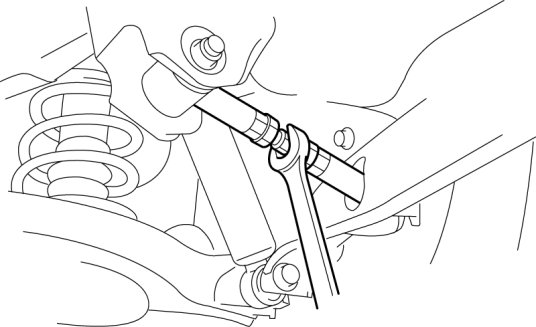

3. Tighten the locknut.






Tightening torque
- 61-98 Nm {6.3-9.9 kgf-m, 45-72 ft-lbf}
