Auto Light-Off Control Module Inspection

AUTO LIGHT-OFF CONTROL MODULE INSPECTION

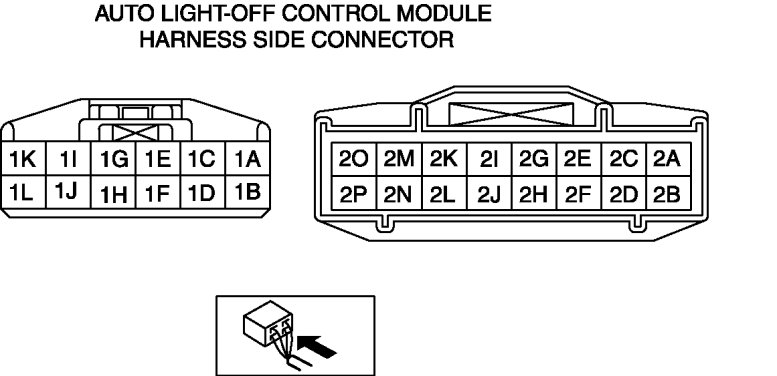

1. Measure the voltage at the auto light-off control module terminals as indicated below.

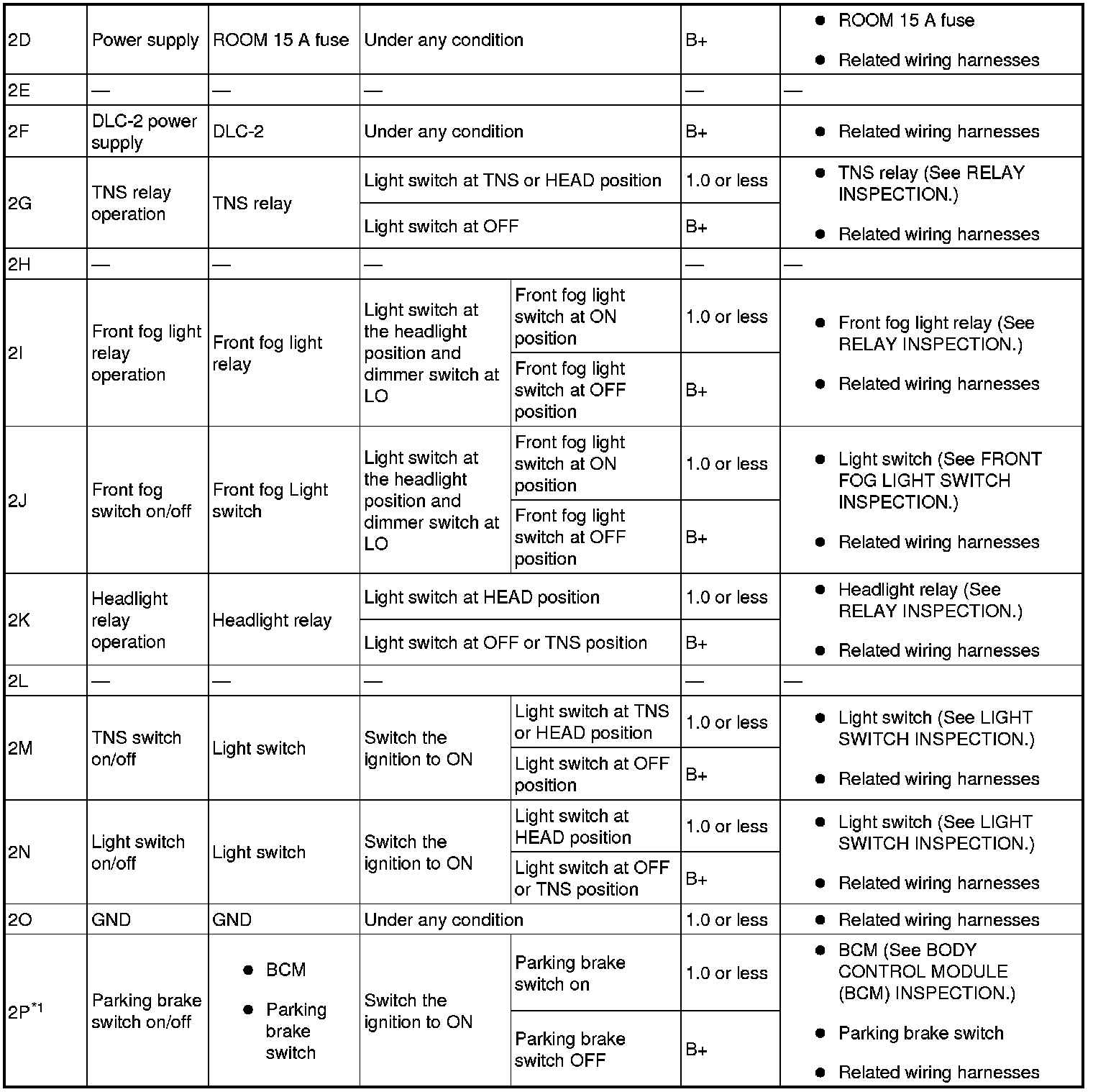

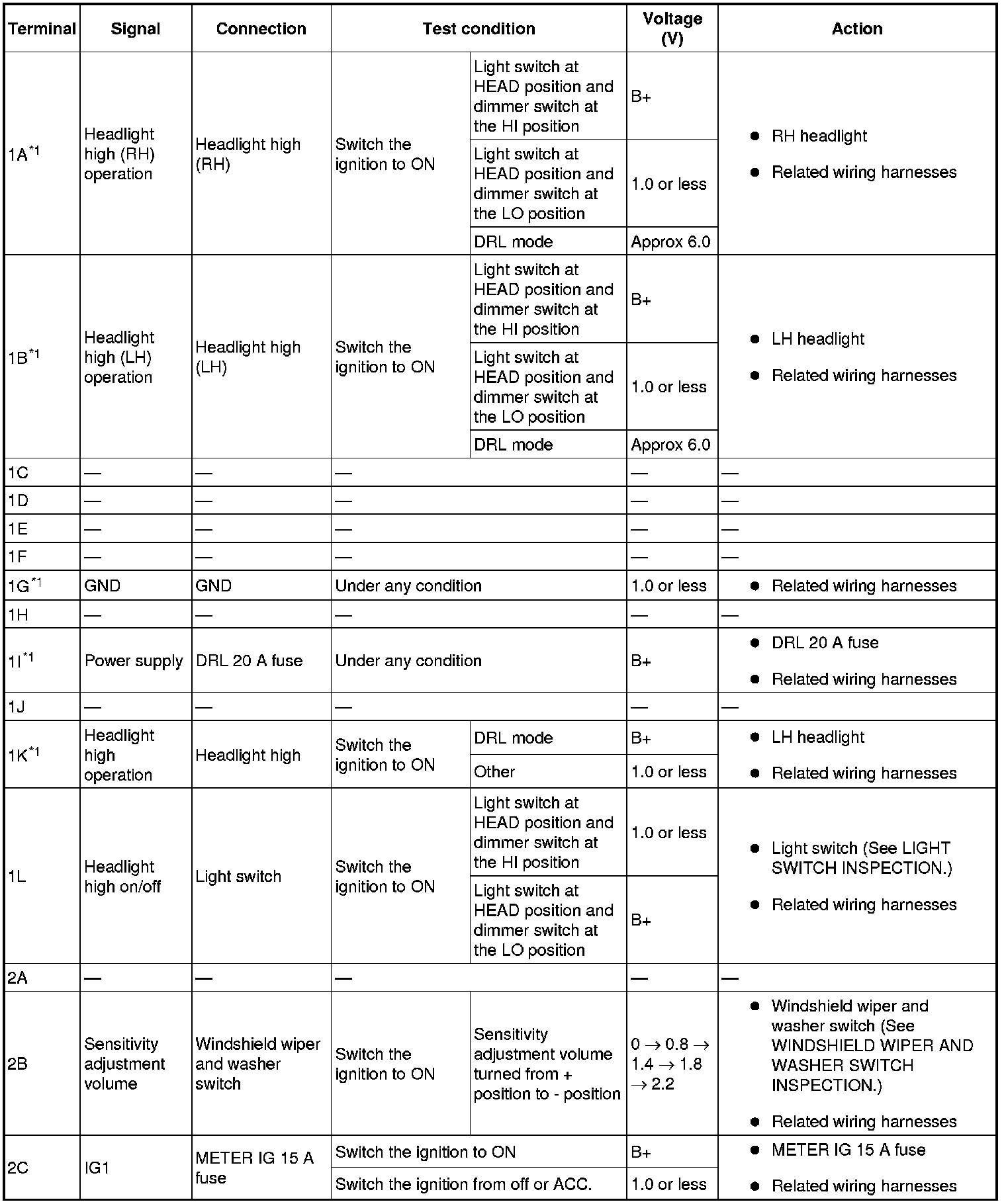

Terminal Voltage List (Reference)

*1
With DRL only.
