Steering Angle Sensor

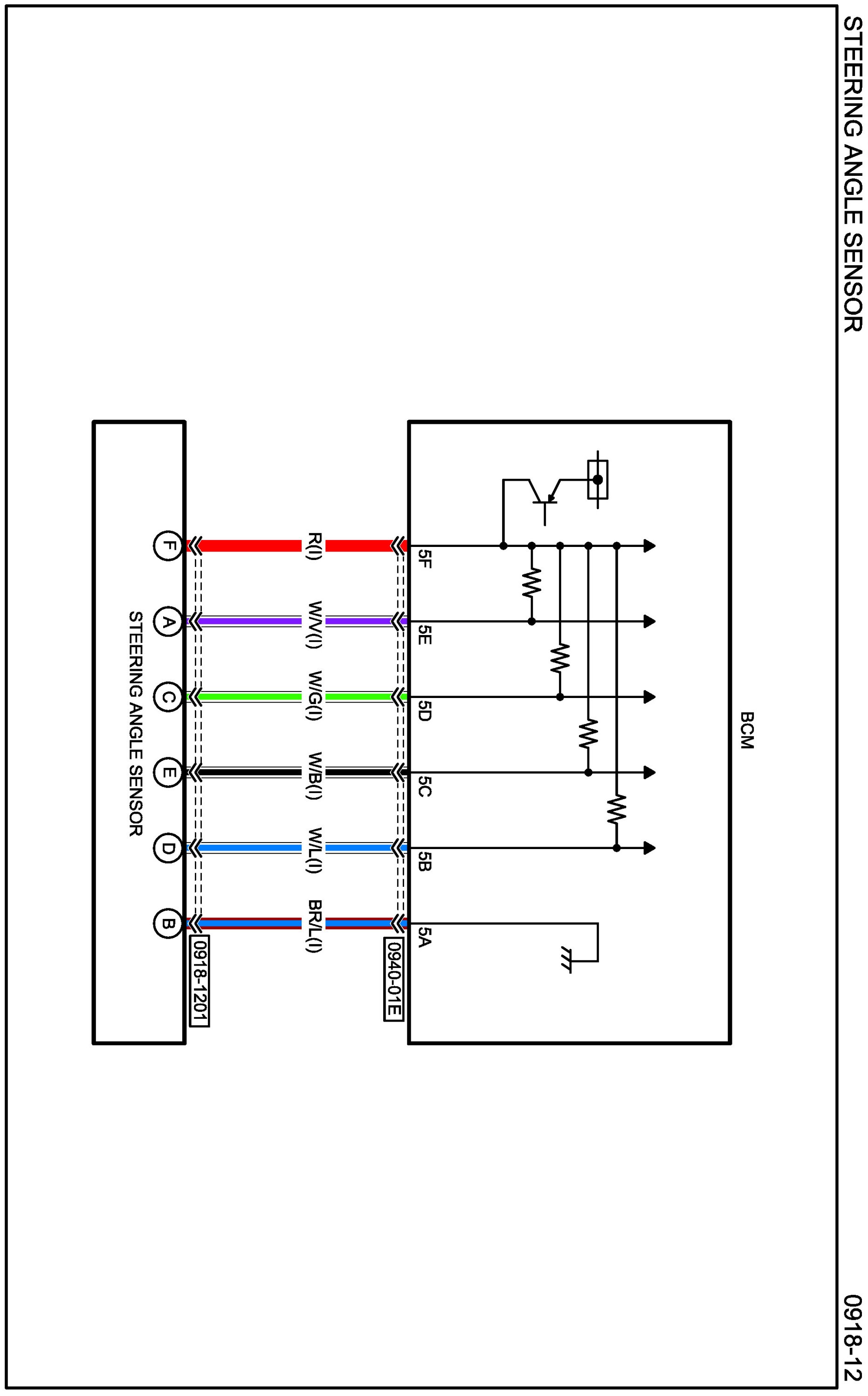

Diagram 0918-12:

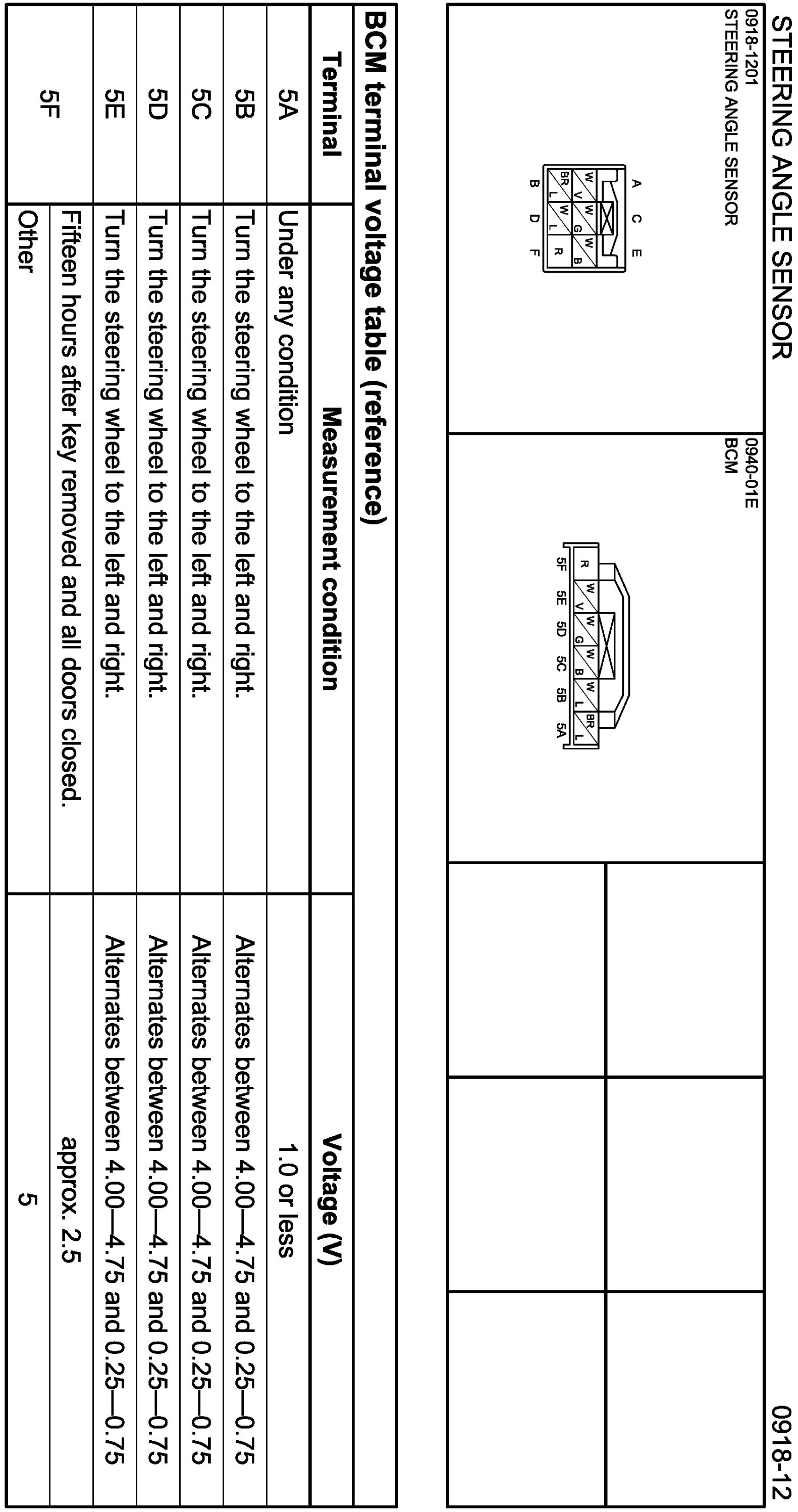

Connectors 0918-12:

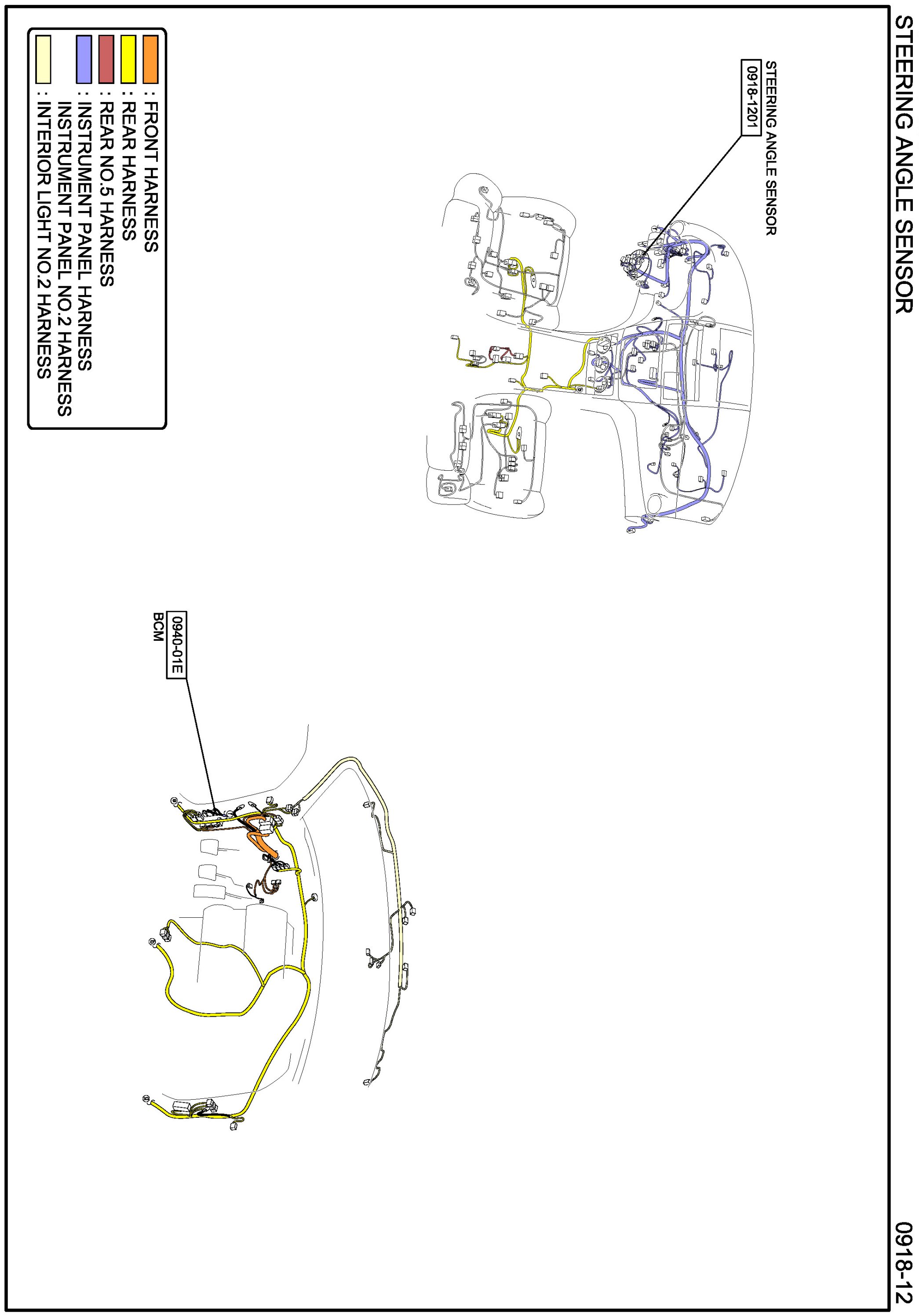

Routing View 0918-12:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
