Shroud Side Panel







SHROUD SIDE PANEL REMOVAL [PANEL REPLACEMENT]

Symbol Mark







Removal Procedure

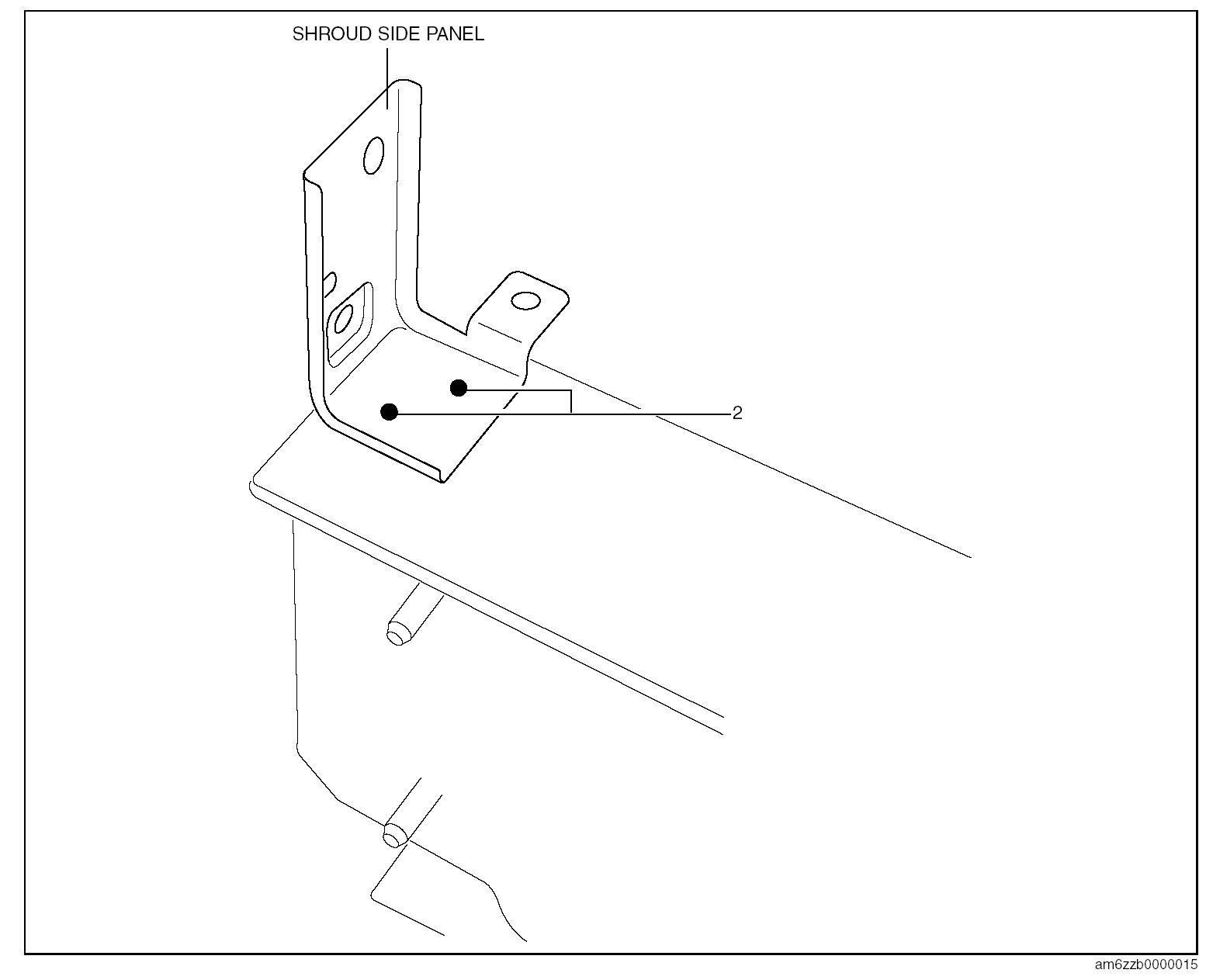

1. Drill the 2 locations indicated shown in the figure.







2. Remove the shroud side panel.

SHROUD SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

Symbol Mark







Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

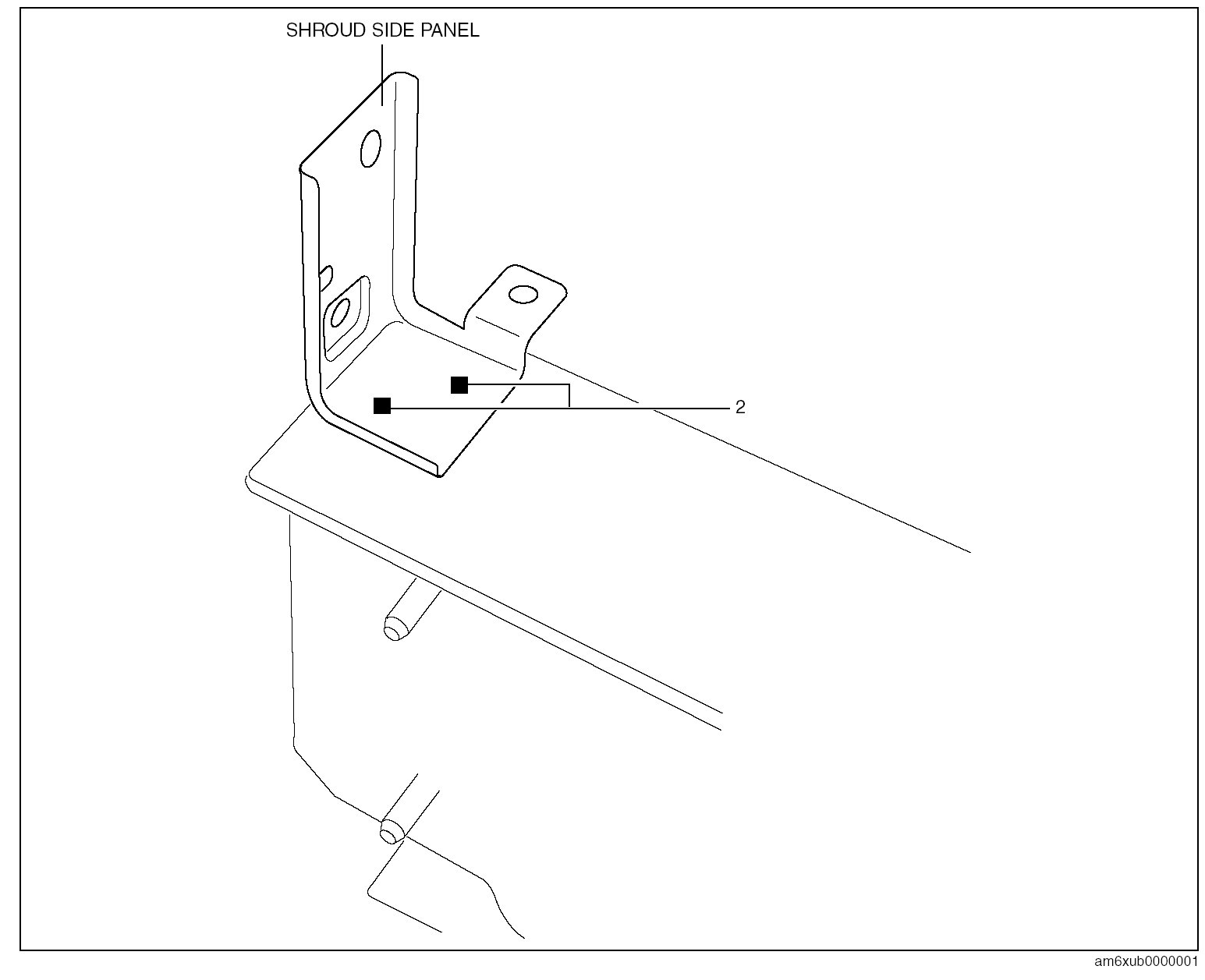

4. Plug weld the 2 locations indicated shown in the figure.
