Keyless Entry System Wiring Diagram - Keyless Entry System
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Keyless Entry System Wiring Diagram - Keyless Entry System

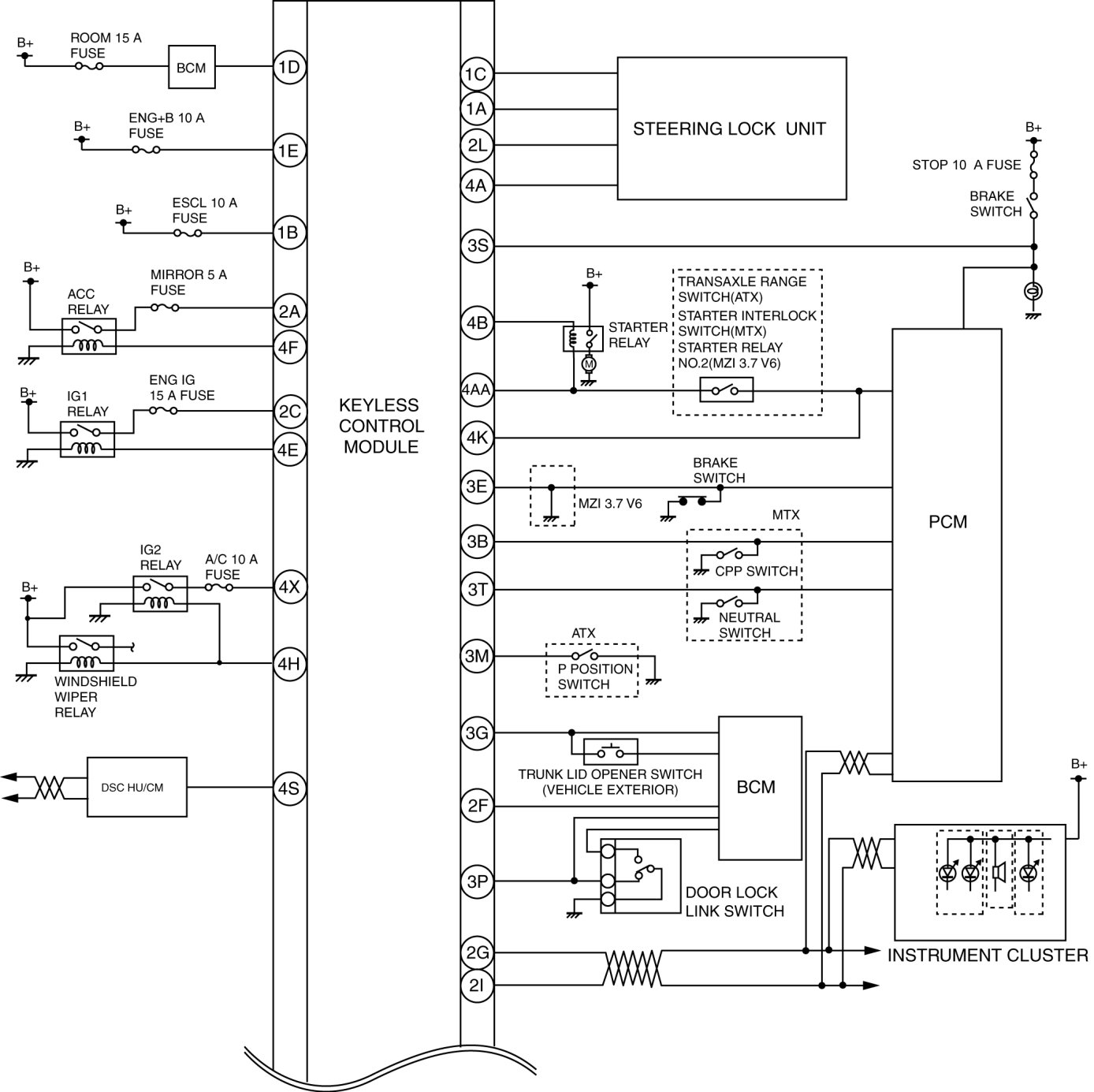

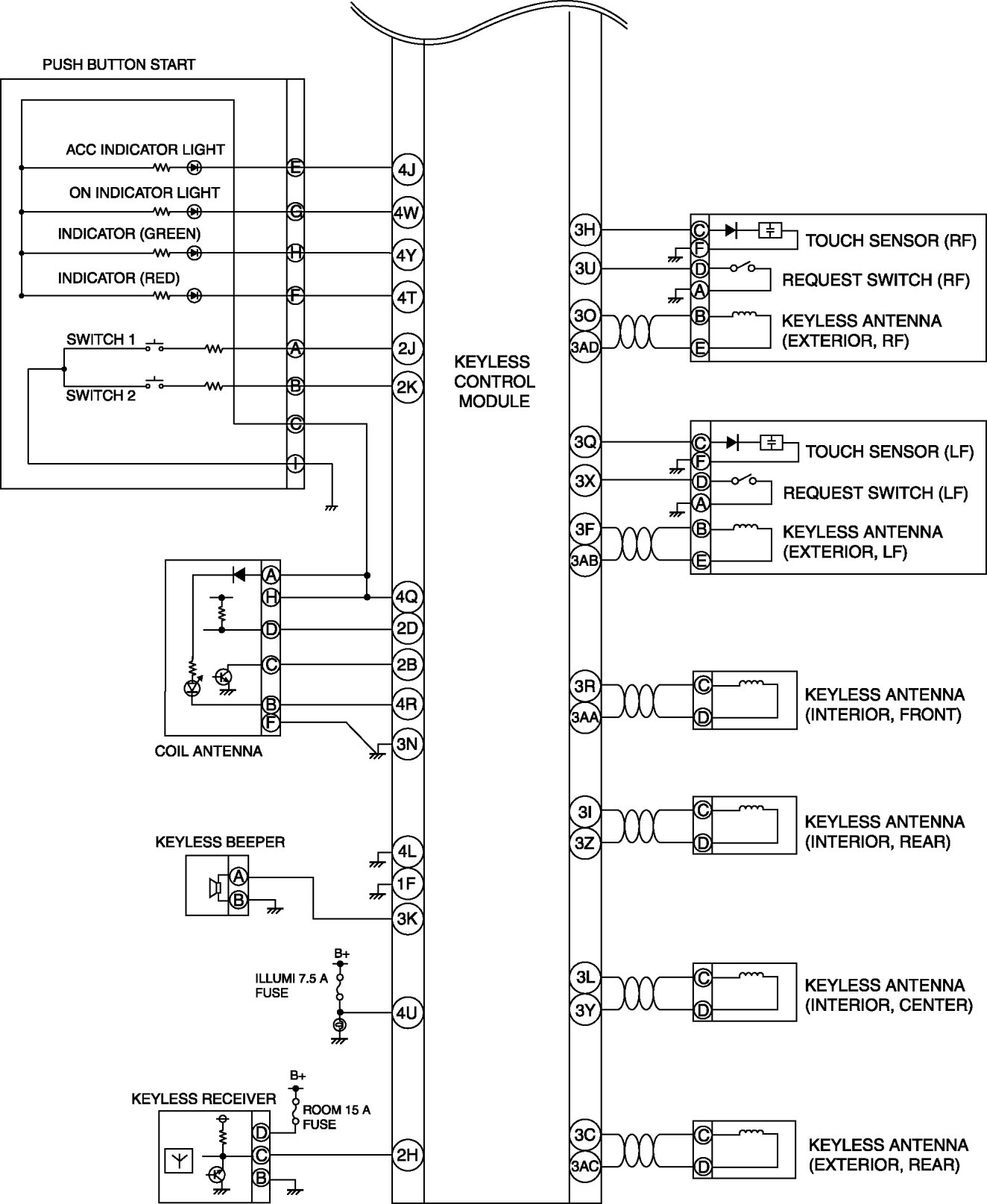

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ADVANCED
KEYLESS ENTRY
AND PUSH BUTTON START SYSTEM]
