Keyless Entry System

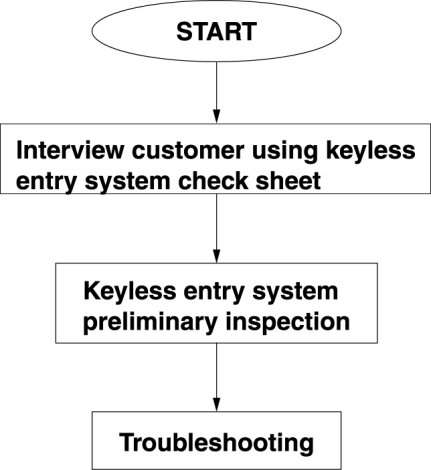

Flow Chart [KEYLESS ENTRY SYSTEM]

- The keyless entry system is controlled by the BCM.
- Go to troubleshooting after identifying the specific malfunction by doing a keyless entry system preliminary inspection.

Flowchart
