Advanced Keyless Entry And Push Button Start System




FOREWORD [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

- The OBD (on-board diagnostic) system has the following functions:

- Malfunction detection function: Detects malfunctions in the advanced keyless entry and push button start system and outputs DTCs.

- PID/data monitor function: Reads out specific input/output signals and the system status.

- Diagnostic DTCs can be read/cleared using the M-MDS.

- The advanced keyless system is controlled by the keyless control module.

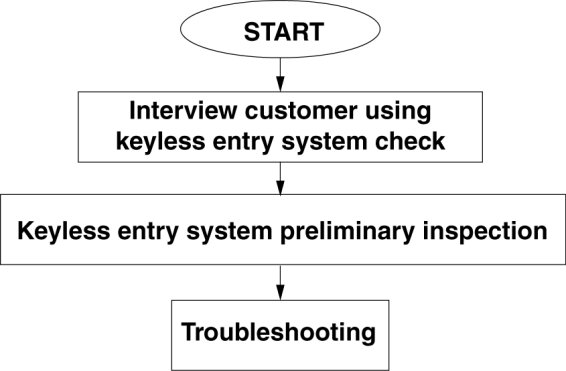

- Go to troubleshooting after identifying the specific malfunction by doing a advanced keyless entry and push-button start system preliminary inspection.
